AZ-Delivery Logic Analyzer¶
AZ-Delivery Logic Analyzer¶
| Status | supported |
| Source code | fx2lafw |
| Channels | 8 |
| Samplerate | 24MHz |
| Samplerate (state) | — |
| Triggers | none (SW-only) |
| Min/max voltage | max. 5.25V |
| Threshold voltage | Fixed: VIH=1.4V, VIL=0.8V |
| Memory | none |
| Compression | none |
| Price range | $5 - $15 |
| Website | [1] |
The AZ-Delivery Logic Analyzer is a standard USB Cypress FX2 based 8-channel 24 MHz logic analyzer, which has a strong resemblence to VKTECH saleae clone.
In sigrok, we use the open-source fx2lafw firmware for this logic analyzer.
The device uses USB\VID_0925&PID_3881 so is indistinguishable from a Saleae_Logic device
Mine was purchased for roughly 12€ from Amazon.de and it arrived in less than a 24-hour window.
See AZDelivery Logic Analyzer/Info for more details (such as lsusb -vvv output) about the device.
Hardware¶
- Main chip: Cypress CY7C68013A-56LTXC (FX2LP in QFN package)
- Transceiver —
- 3.3V voltage regulator: 662K (XC6206P332MR)
- I²C EEPROM: ATMHK101 24C02N
- Crystal: 24MHz
Photos¶
Az Delivery Logic Pcb Front

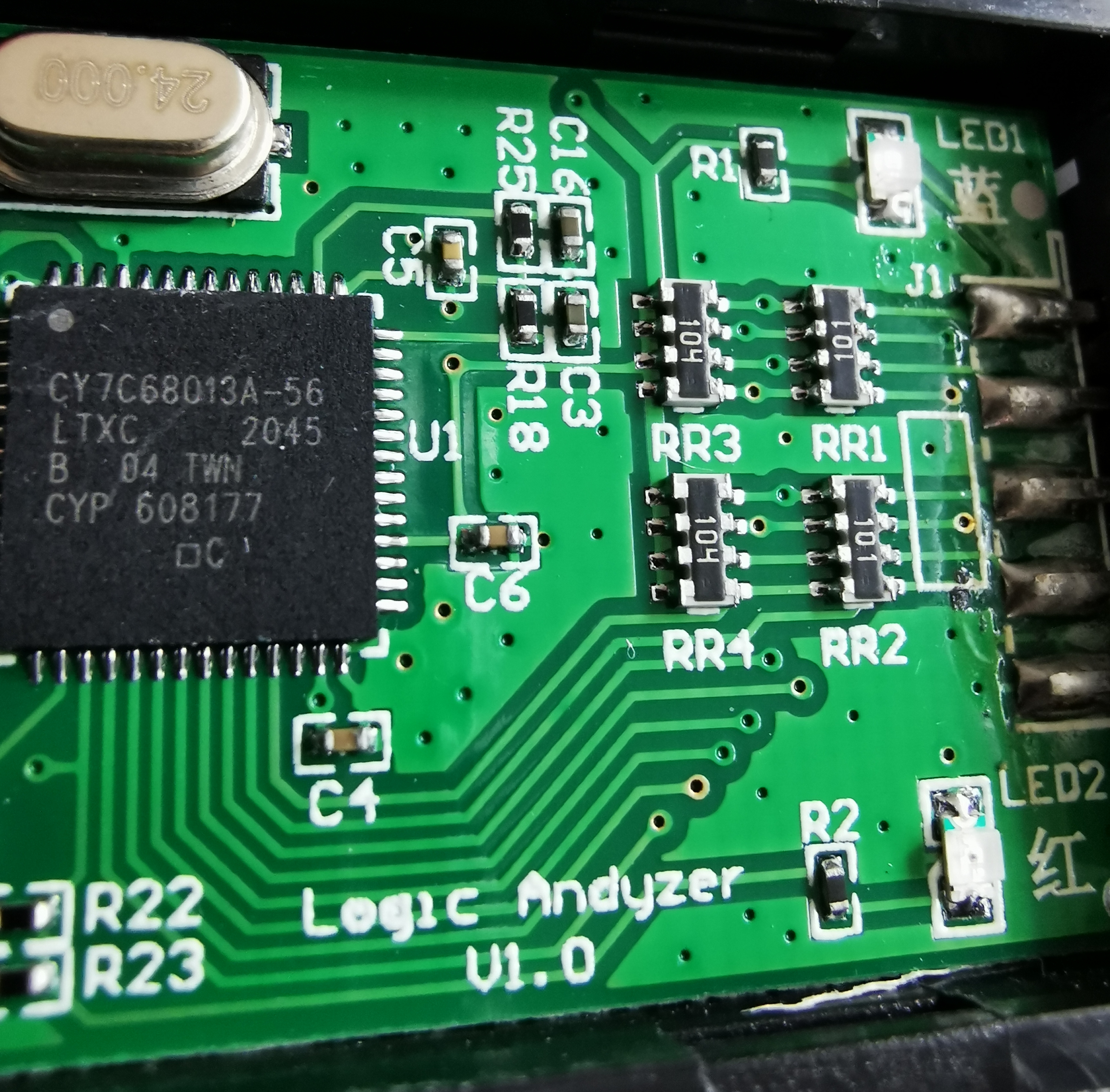

Azdelivery Logic Analyzer Closeup Cy7c68013a

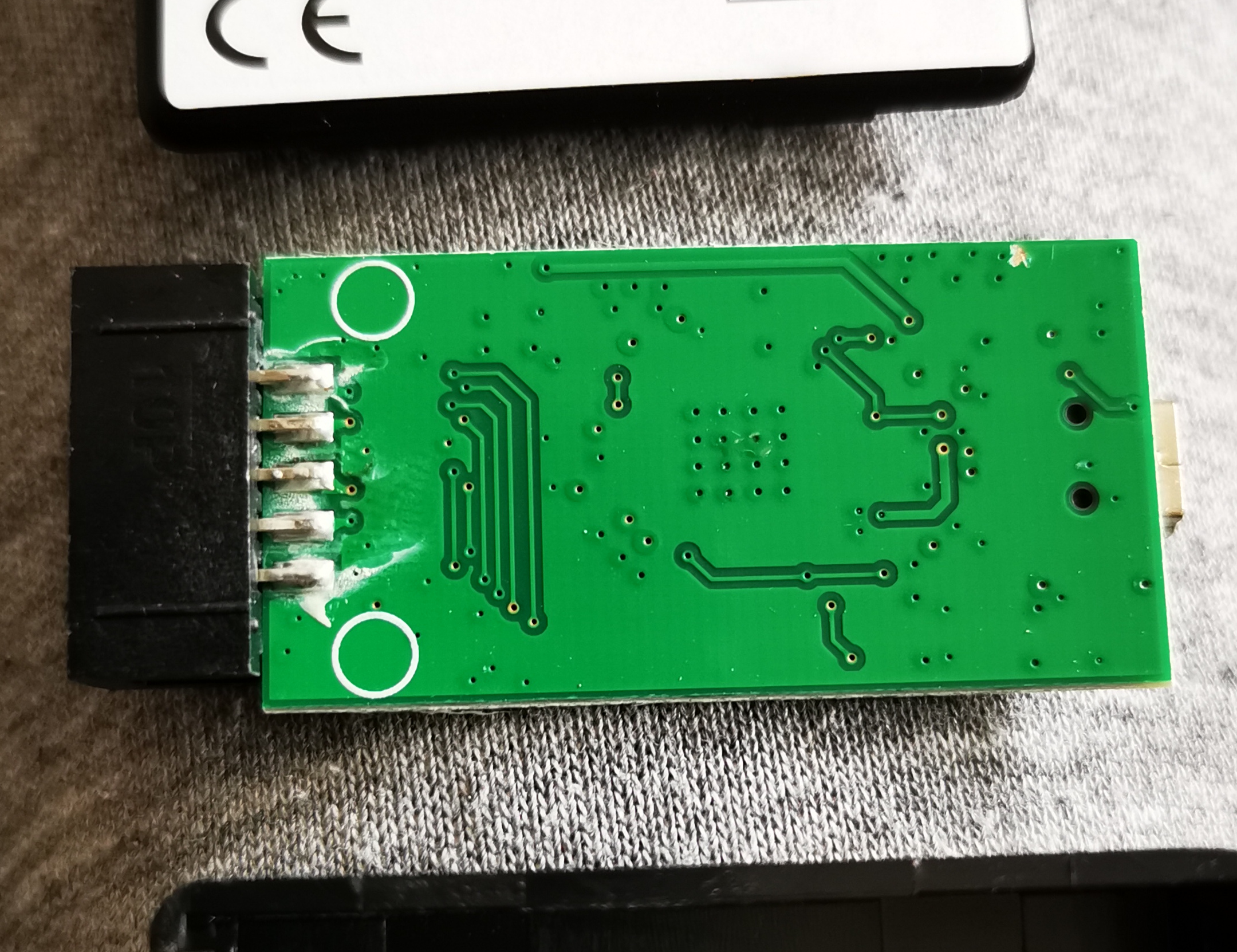

Az Delivery Logic Pcb Back

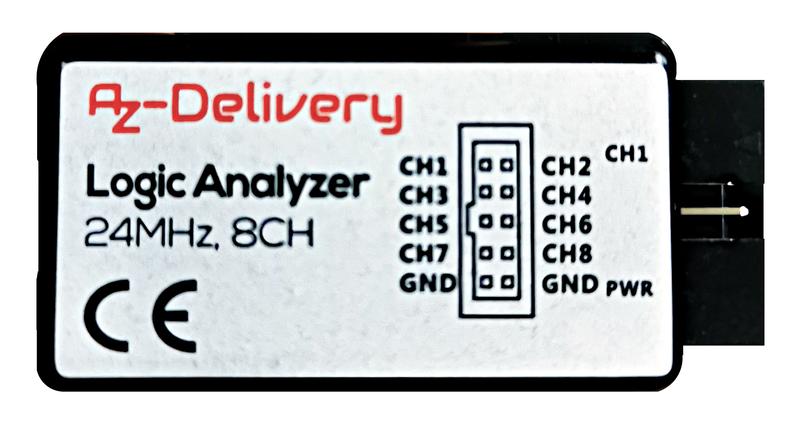

Az Delivery Logic Analyzer

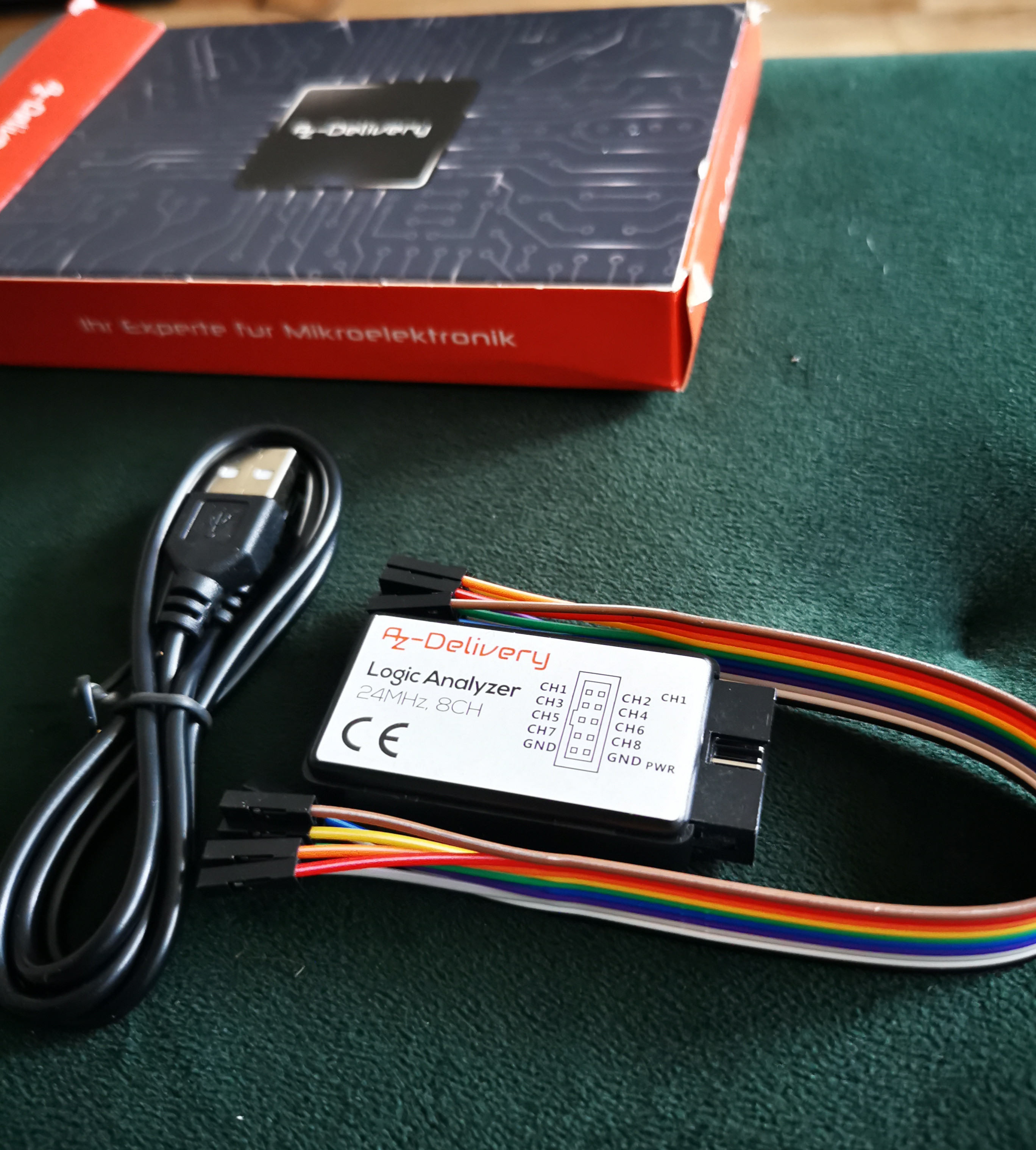

Az Delivery Logic Package Content
