Acute PKLA-1216¶
Acute PKLA-1216¶
| Status | planned |
| Channels | 16 |
| Samplerate | 200MHz |
| Samplerate (state) | 75MHz |
| Triggers | pattern, edge |
| Min/max voltage | -30V — 30V |
| Threshold voltage | -7.2V — 6.8V |
| Memory | 256Kbit/channel |
| Compression | ? |
| Website | acute.com.tw |
The Acute PKLA-1216 is a 200MHz, 16-channel, USB-based logic analyzer.
See Acute PKLA-1216/Info for more details (such as lsusb -vvv output) about the device.
Hardware¶
- Main chip (ASIC): Acute AQC20256Q208-7 BAC490X370A V00028 0507
- SRAM (4MBit): Cypress CY7C1347G-133AXC (datasheet)
- USB2.0 to IEEE-1284 / DMA Bridge: Genesys GL660USB
- One-PLL General-Purpose Flash-Programmable and I2C Programmable Clock Generator: Cypress CY22150FC (datasheet)
- Low-Noise, 5.5V-Input, PWM Step-Down Regulator: Maxim MAX1692EUB (datasheet)
- Dual-Output (Positive and Negative), DC-DC Converter for CCD and LCD: Maxim MAX685 (datasheet)
- 3.3V, Quad 2:1 Mux/DeMux NanoSwitch: Pericom PI3B3257Q (datasheet)
- 16-Bit Bidirectional Transceiver: Pericom PI74LPT16245 (datasheet)
- 1kBit Microwire EEPROM: M93C46-W (datasheet)
- Quad Low-Power JFET-Input General-Purpose Operational Amplifier: Texas Instruments TL064 (datasheet)
- Dual 8-Bit Multiplying Digital-to-Analog Converters: TLC7528 (datasheet)
- 12MHz crystal: YI12.000H5
Photos¶
Acute Pkla1216 Acute Aqc20256q208 7

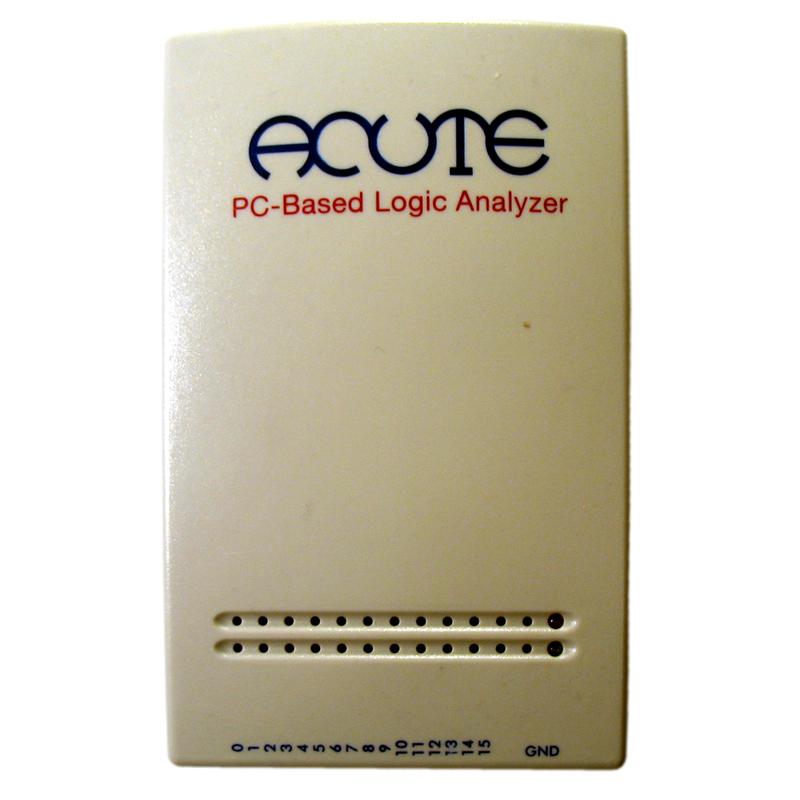

Acute Pkla1216

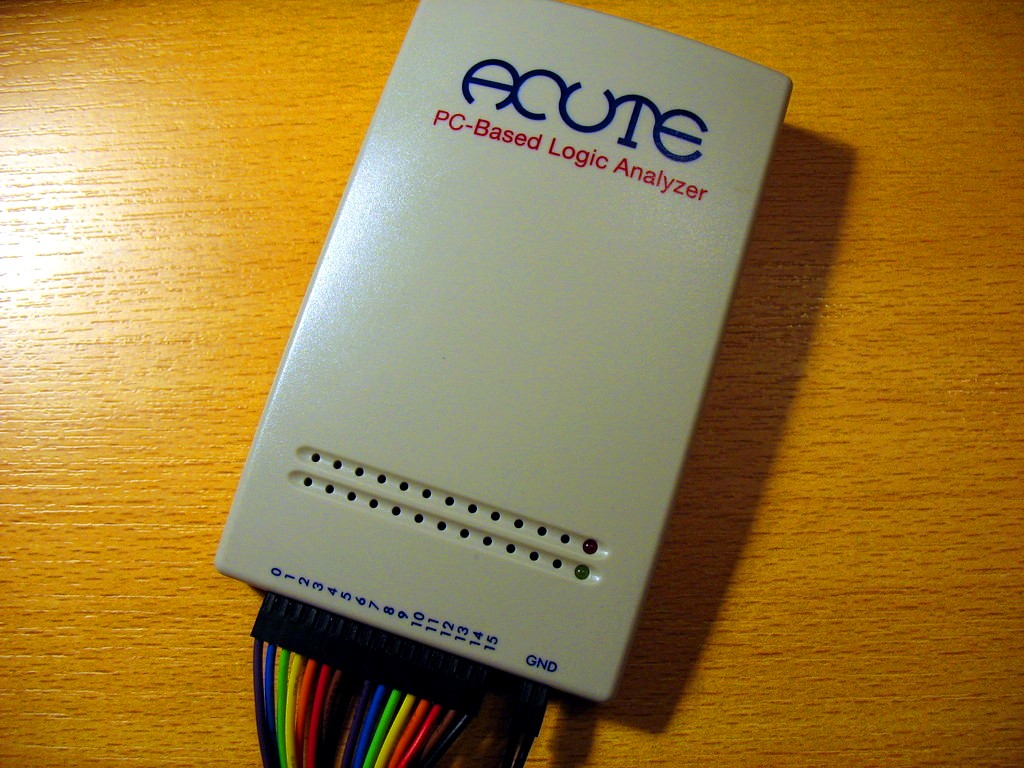

Acute Pkla1216 Front

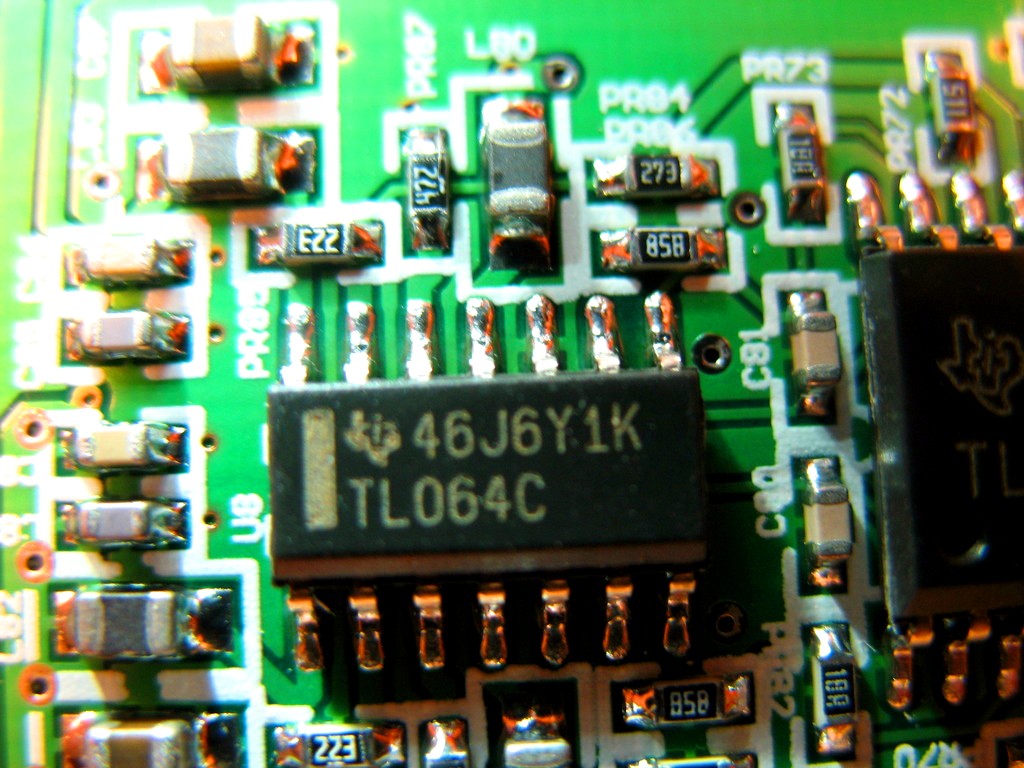

Acute Pkla1216 Ti Tl064c

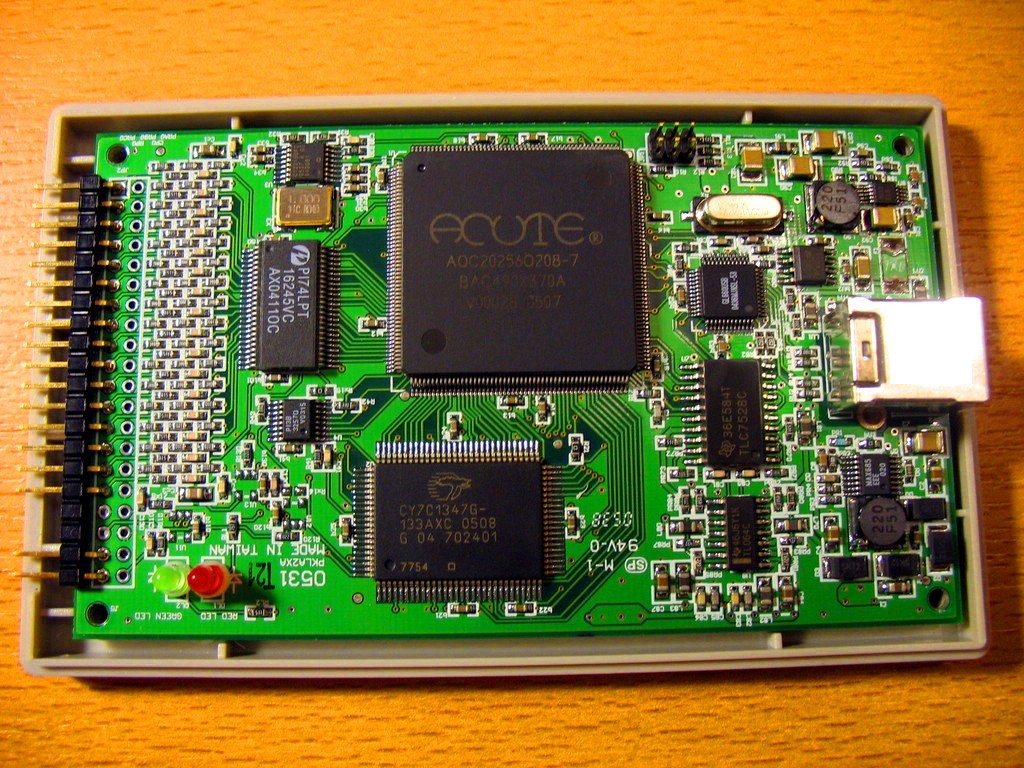

Acute Pkla1216 Pcb Front

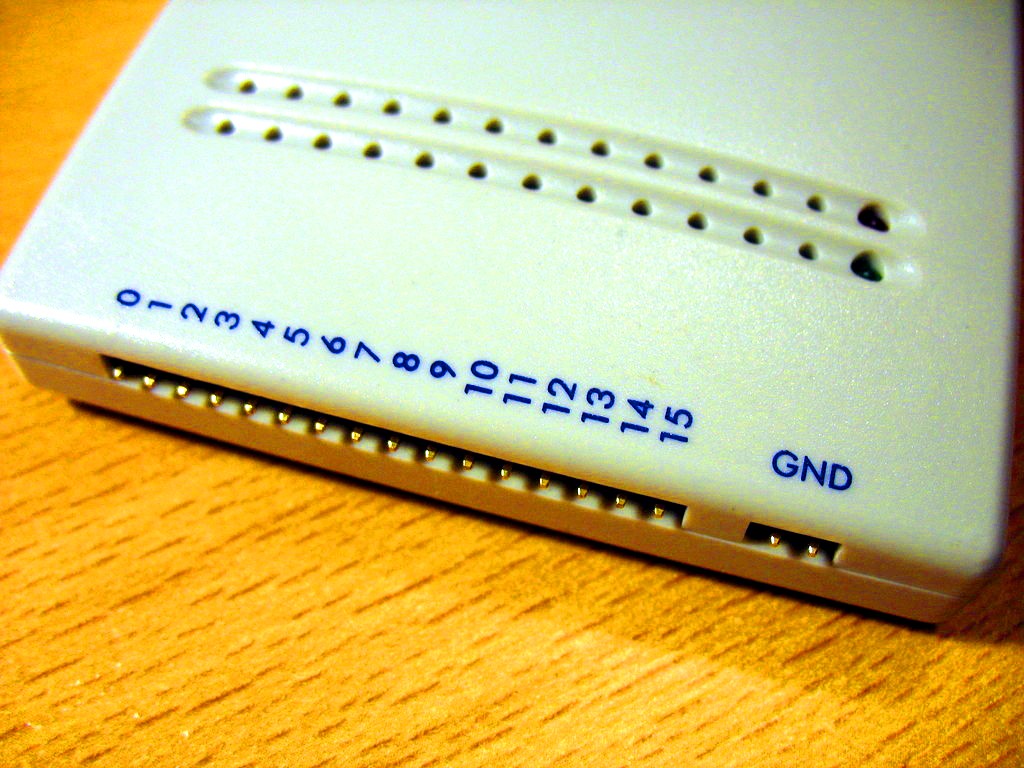

Acute Pkla1216 Connectors

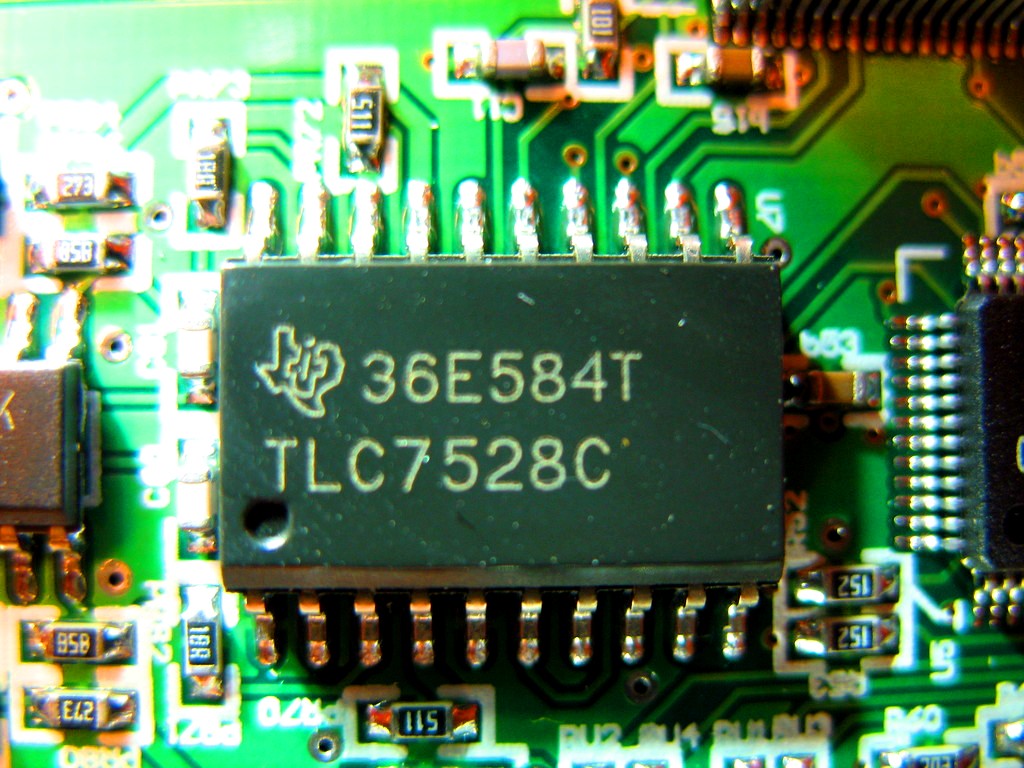

Acute Pkla1216 Ti Tlc7528c

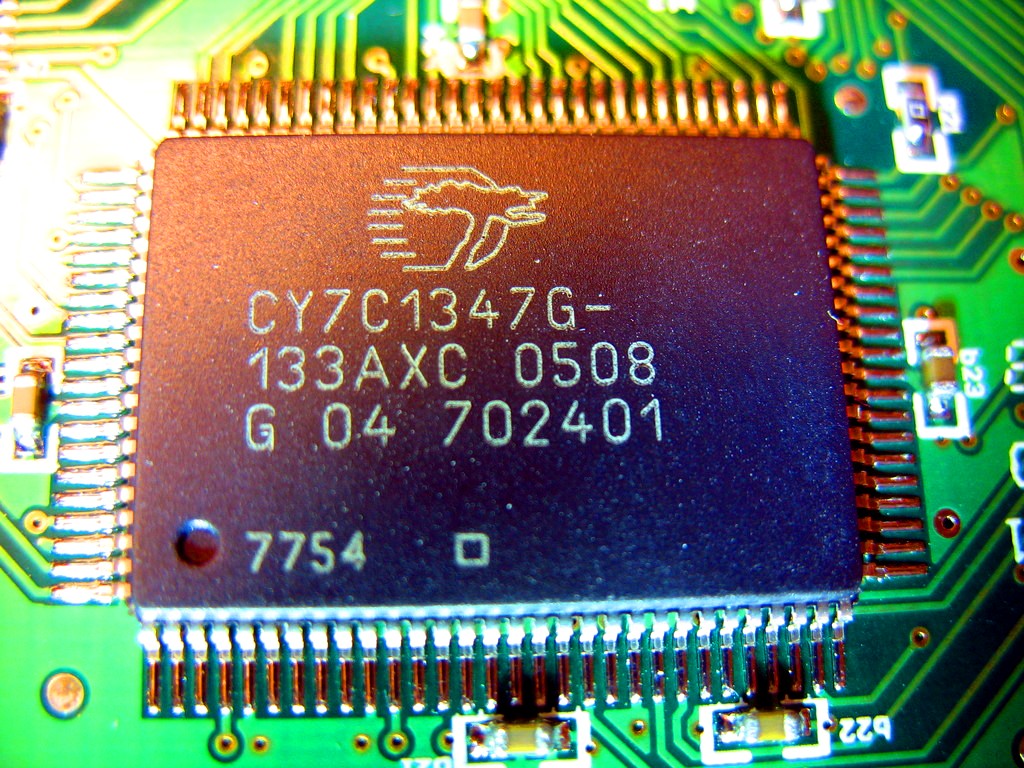

Acute Pkla1216 Cypress Cy7c1347g 133axc

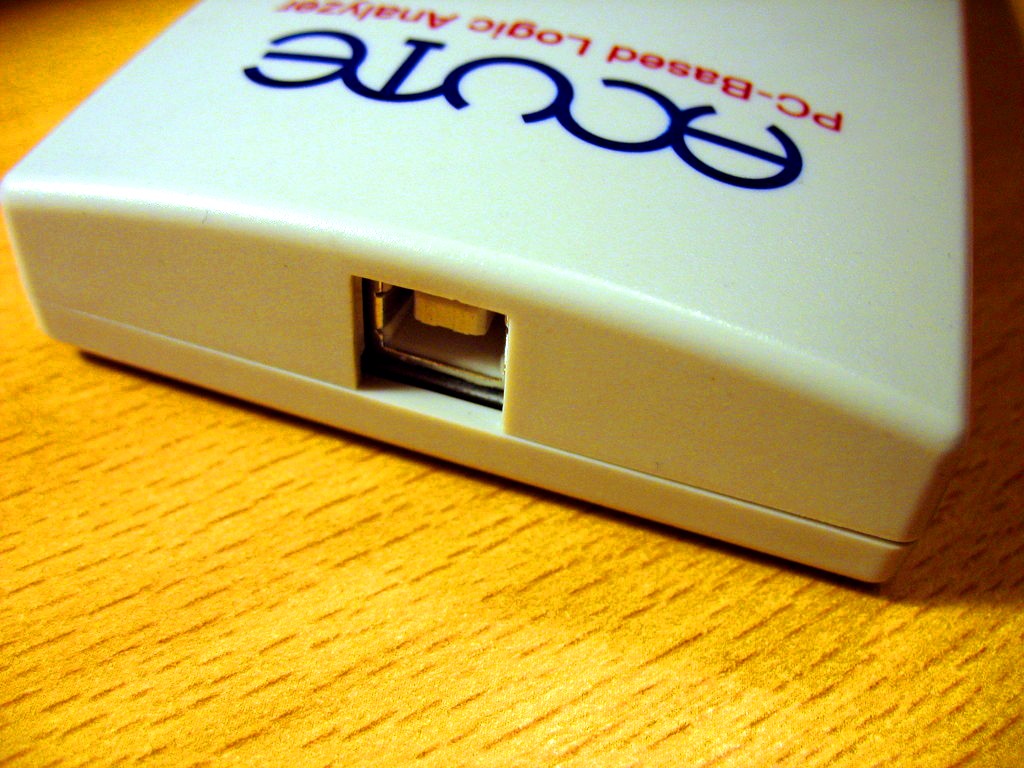

Acute Pkla1216 Usb

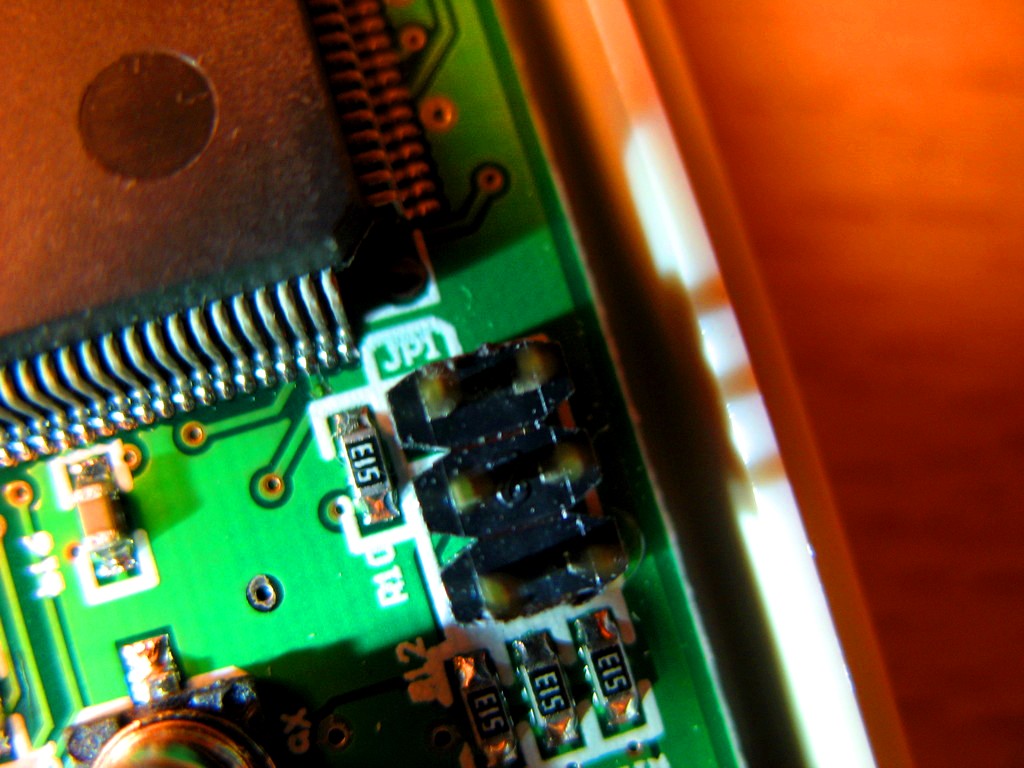

Acute Pkla1216 Jumper Jp1

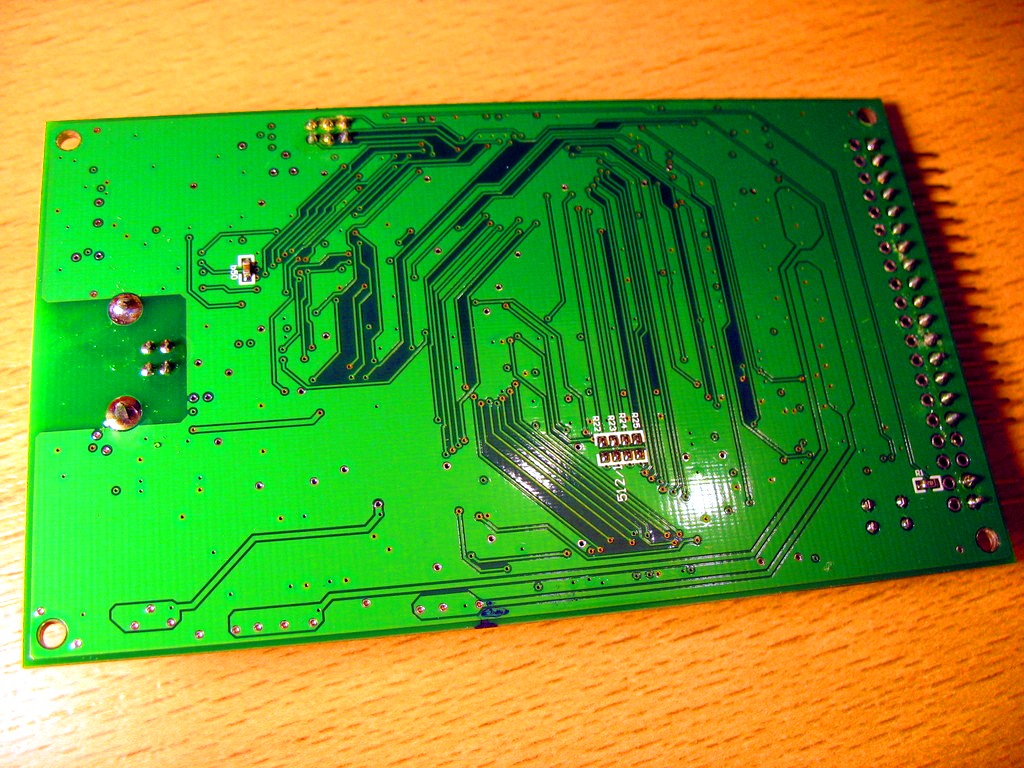

Acute Pkla1216 Pcb Back

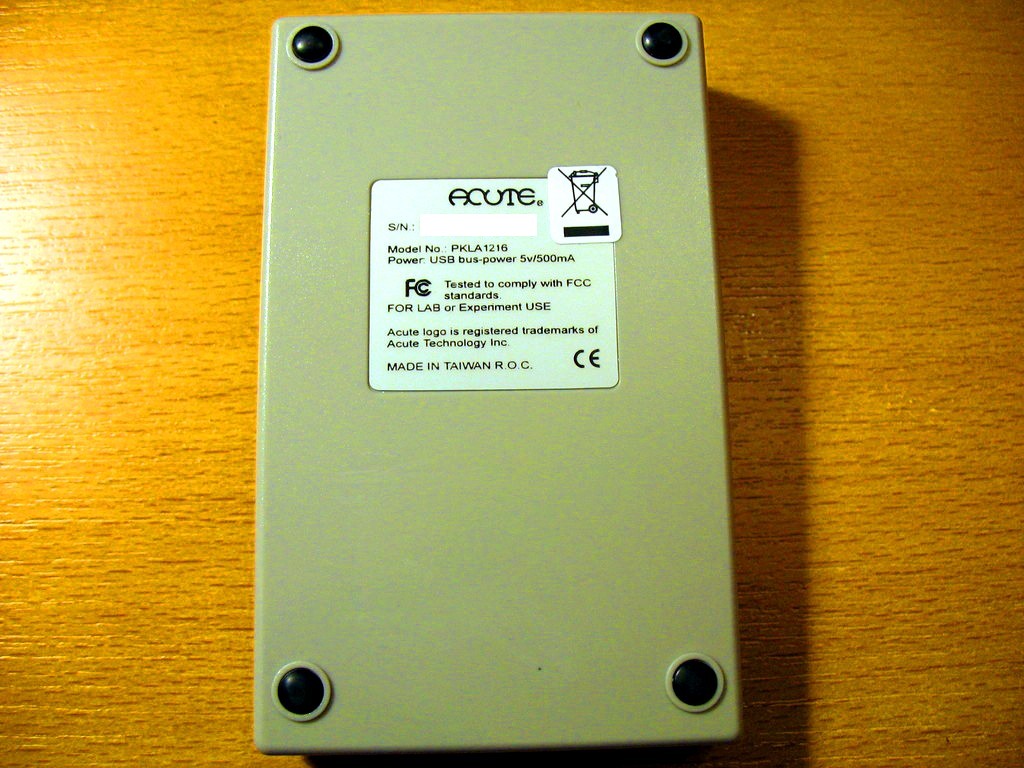

Acute Pkla1216 Back

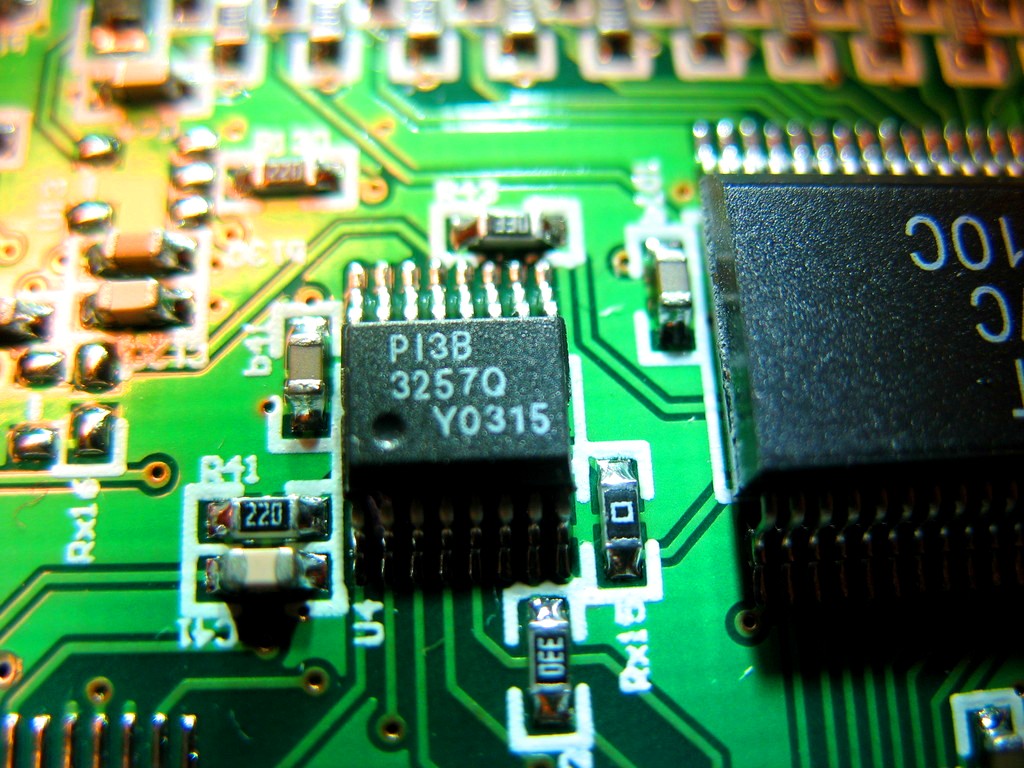

Acute Pkla1216 Pericom Pi3b3257q

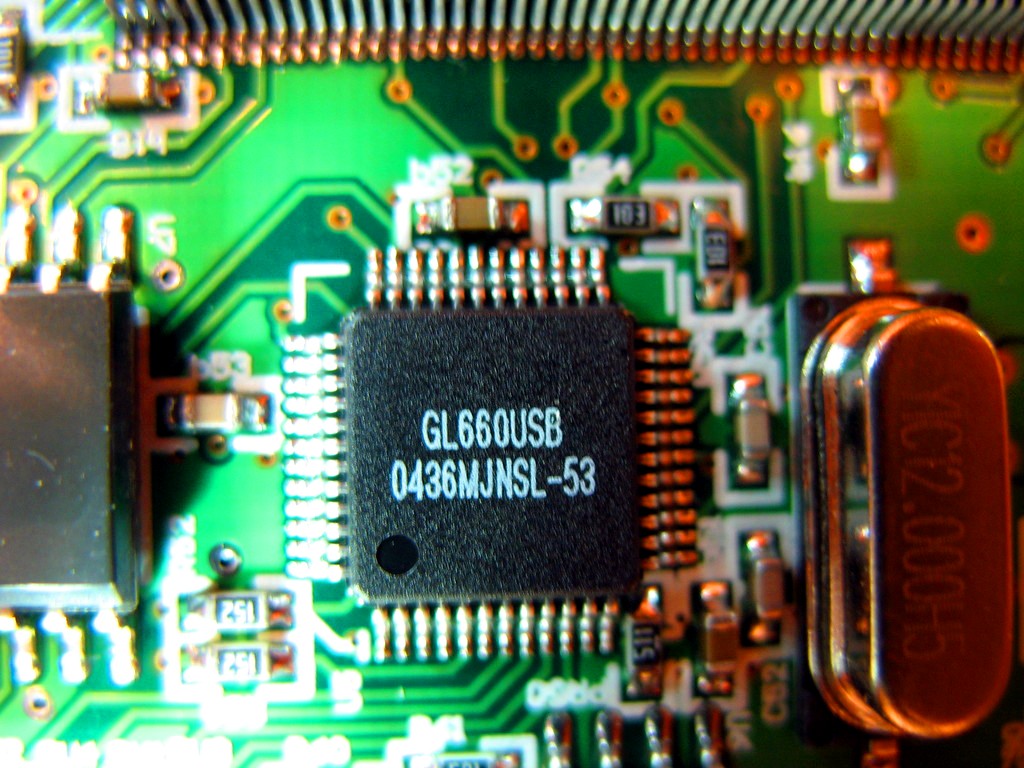

Acute Pkla1216 Genesys Gl660usb

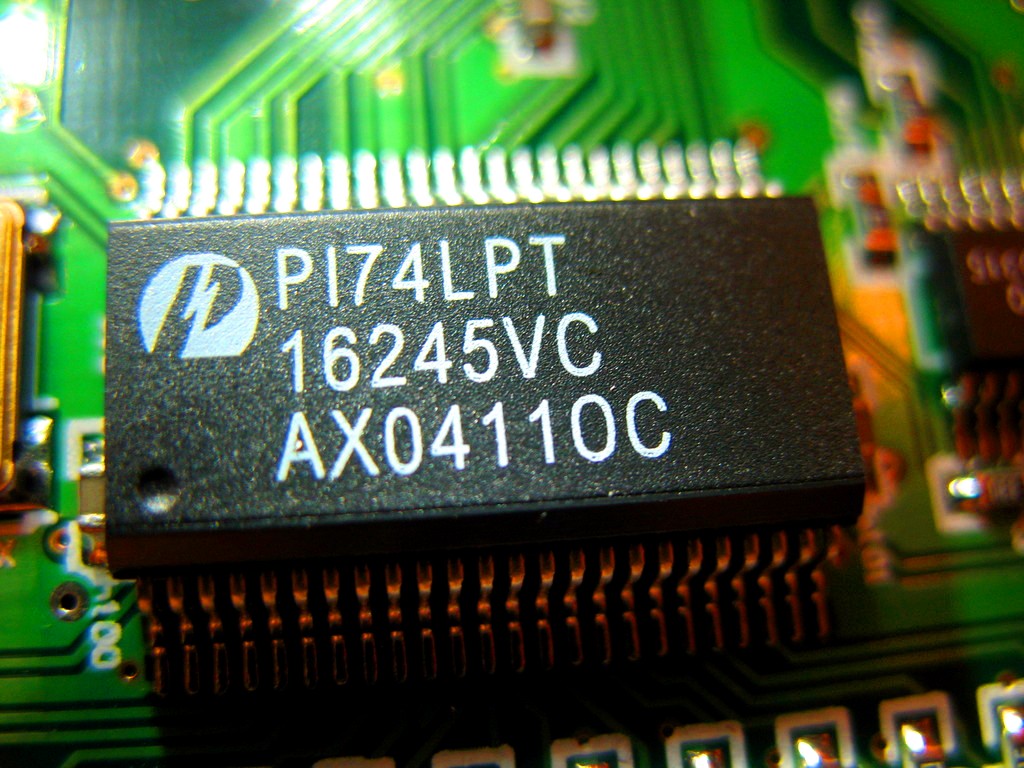

Acute Pkla1216 Pericom Pi74lpt16245vc

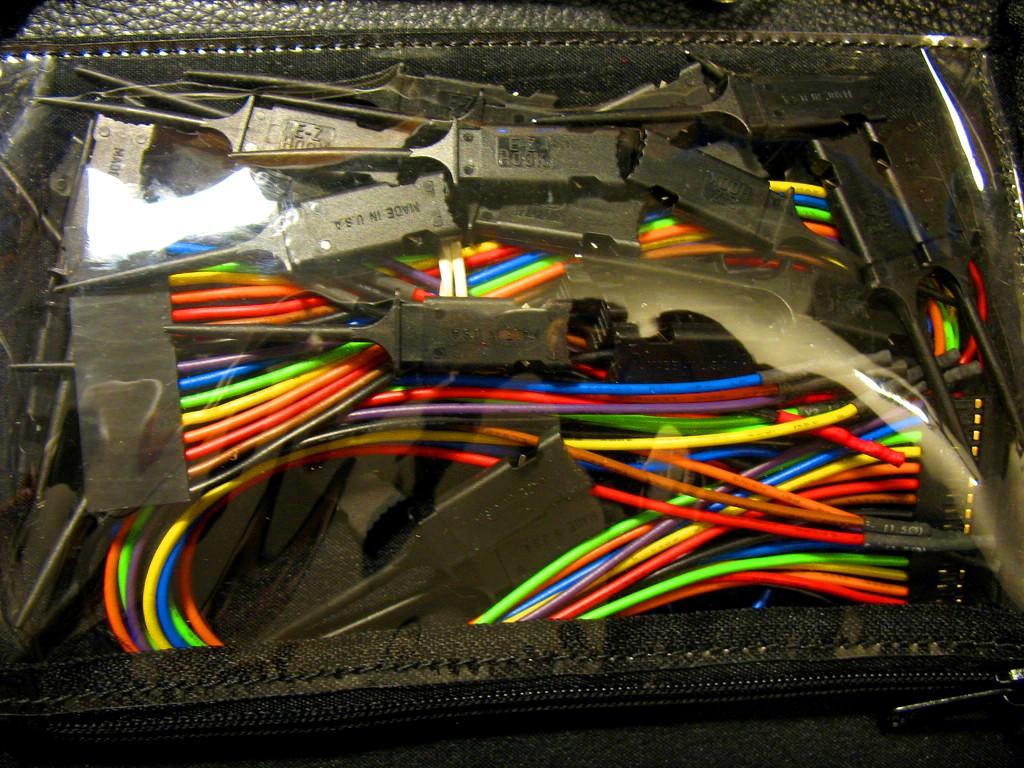

Acute Pkla1216 Cables Probes

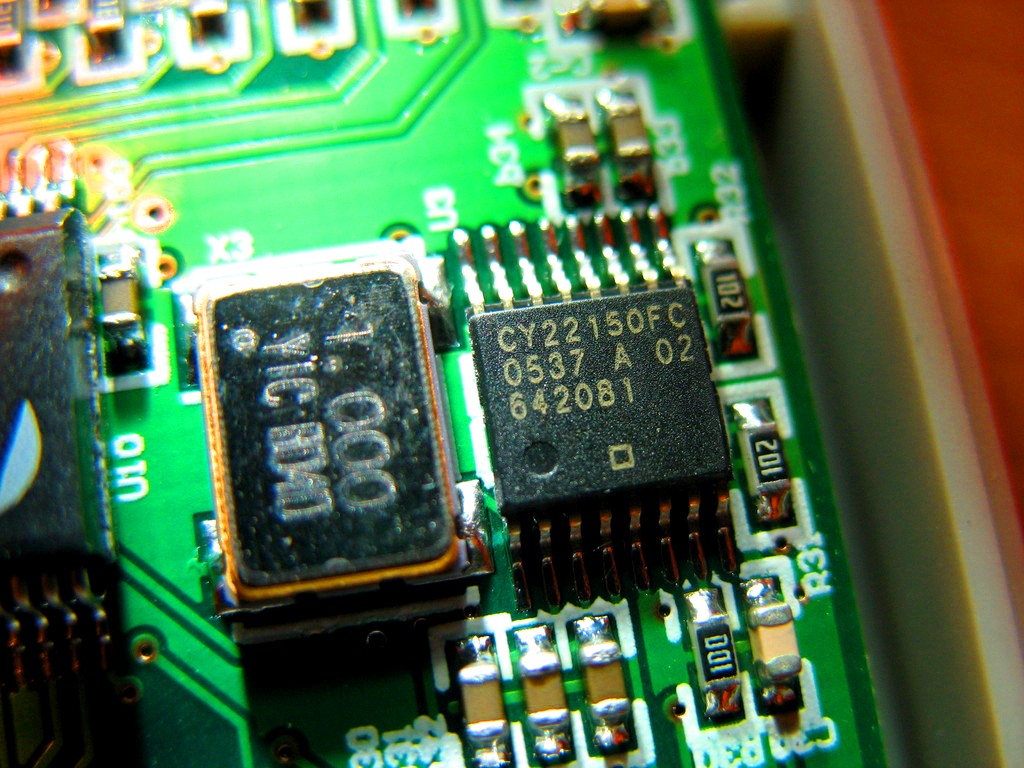

Acute Pkla1216 Cypress Cy22150fc

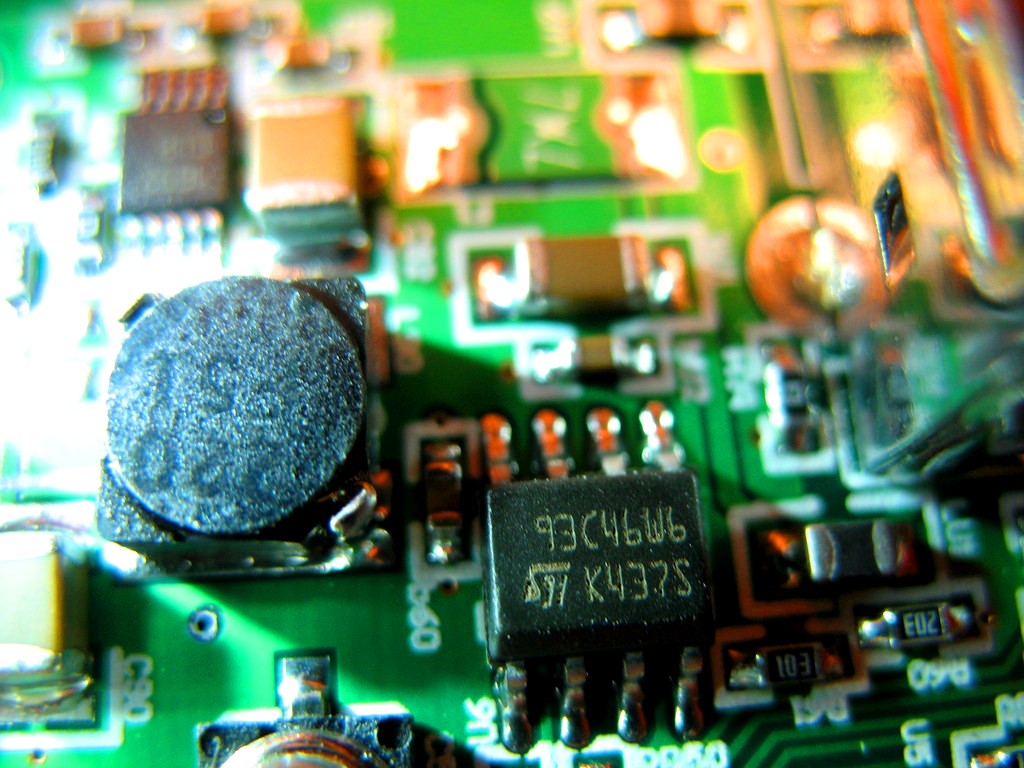

Acute Pkla1216 St 93c46w6

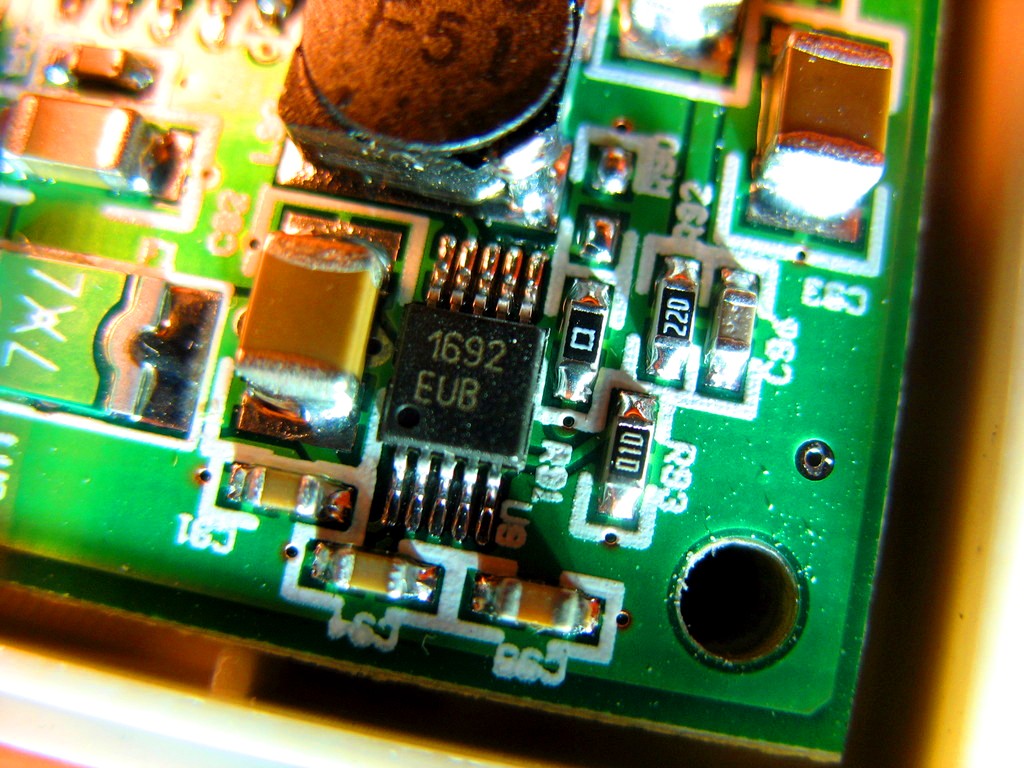

Acute Pkla1216 Maxim Max1692eub

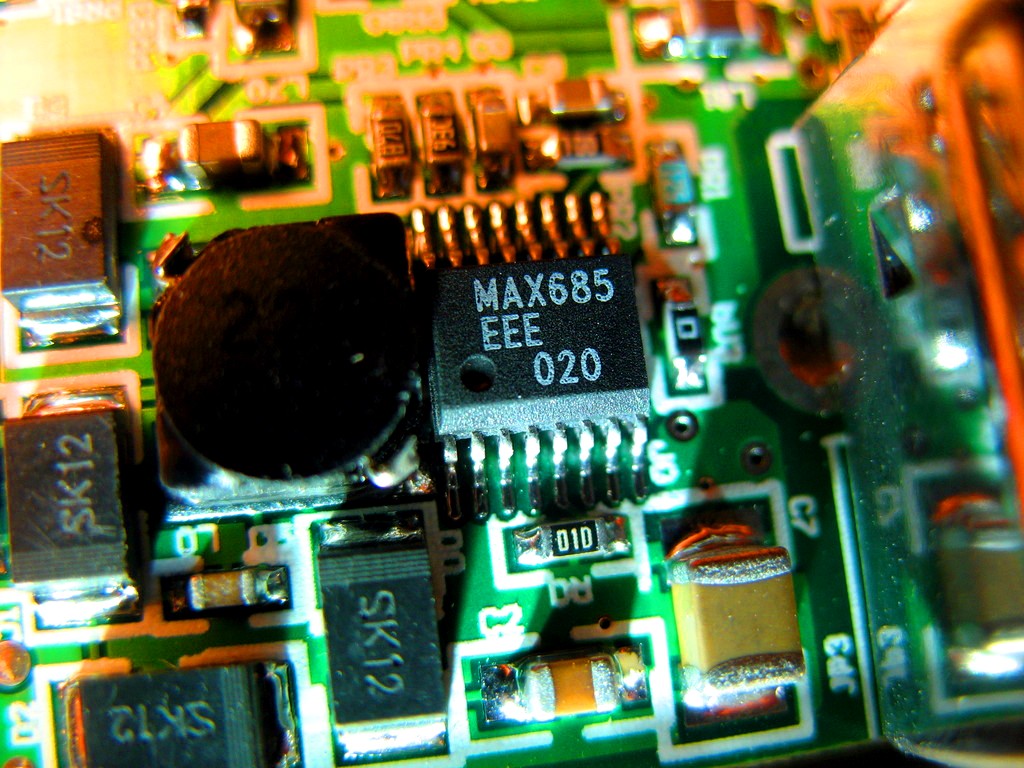

Acute Pkla1216 Maxim Max685
Protocol¶
TODO.
