PeakTech 2170¶
PeakTech 2170¶
| Status | supported |
| Source code | serial-lcr |
| Counts | 20000 |
| IEC 61010-1 | — |
| Connectivity | USB |
| Measurements | resistance, capacitance, inductance, equivalents |
| Features | autorange, rel, data-hold, auto-poweroff, self-calibration |
| Website | peaktech.de |
The PeakTech 2170 is a 20000 counts handheld LCR meter with USB connectivity.
Accuracy is 0.3%. LCR measurement frequencies are 100/120/1000/10k/100k Hz.
See PeakTech 2170/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- Cyrustek ES51919/ES51920 chipset
- Prolific PL2303 USB converter
USB cable:
- The LCR meter has USB builtin (onboard PL2303 chip, mini-B connector).
Photos¶
P2170 Device Back

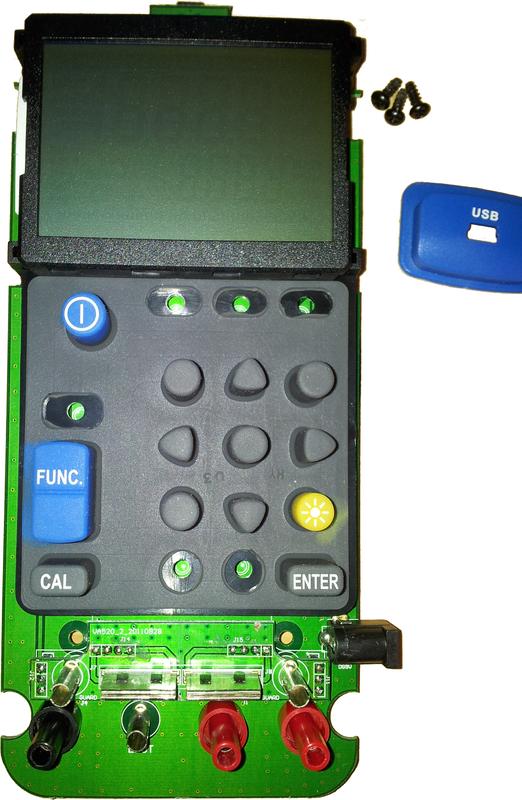

P2170 Pcb Bottom

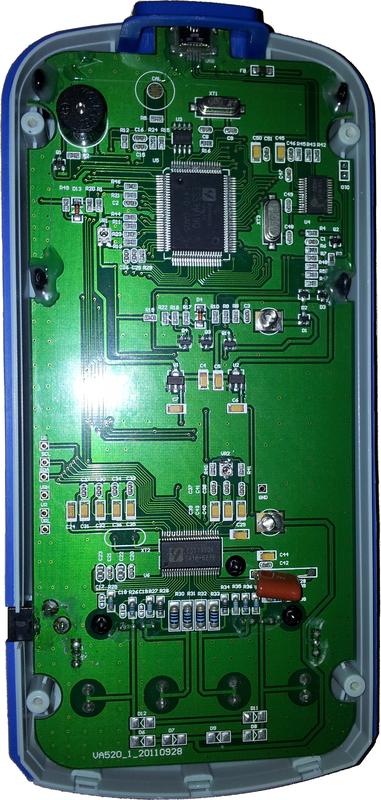

P2170 Pcb Top

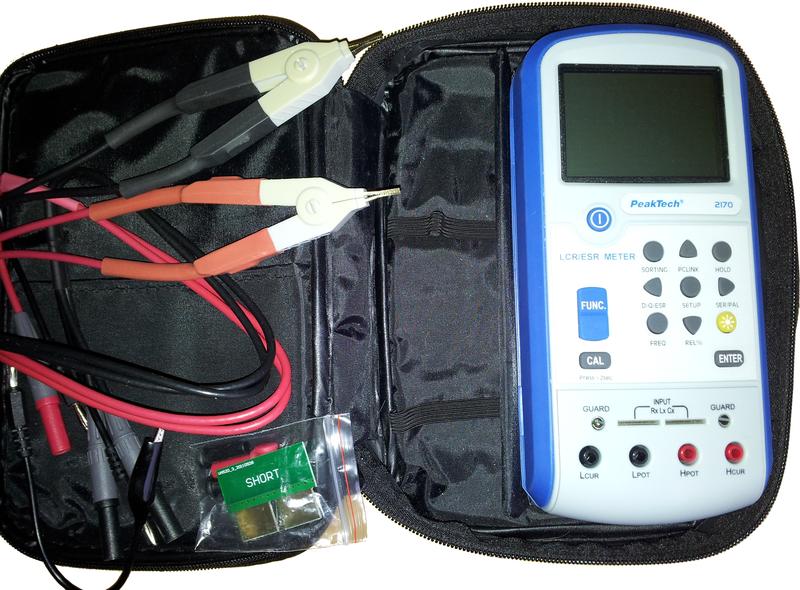

P2170 Accessories

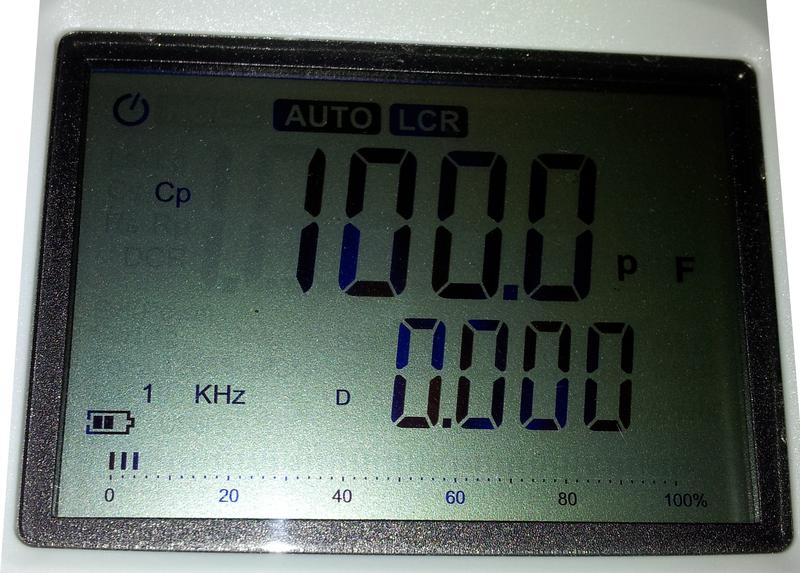

P2170 Lcd Capacitance

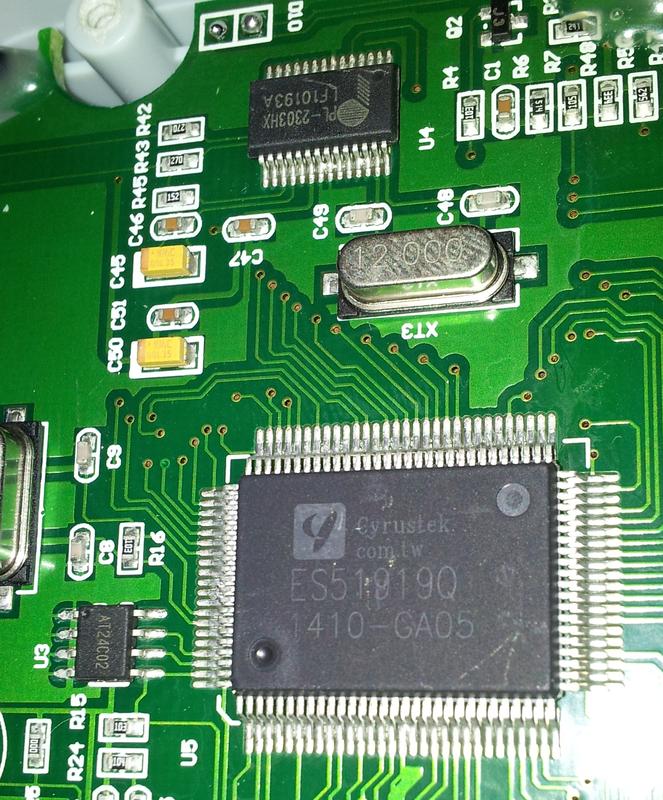

P2170 Pcb Top Lcrchip

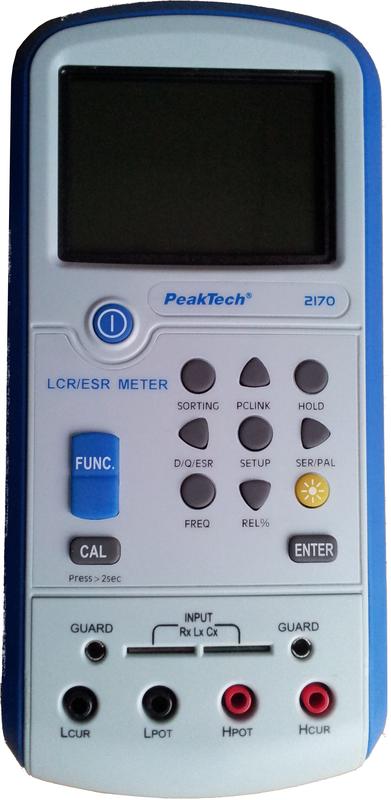

P2170 Device Front

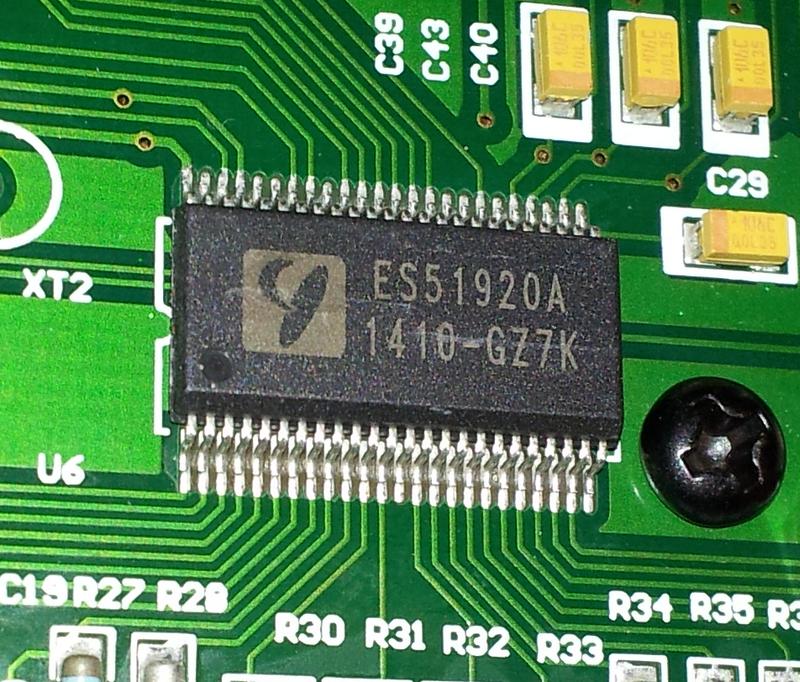

P2170 Pcb Top Input

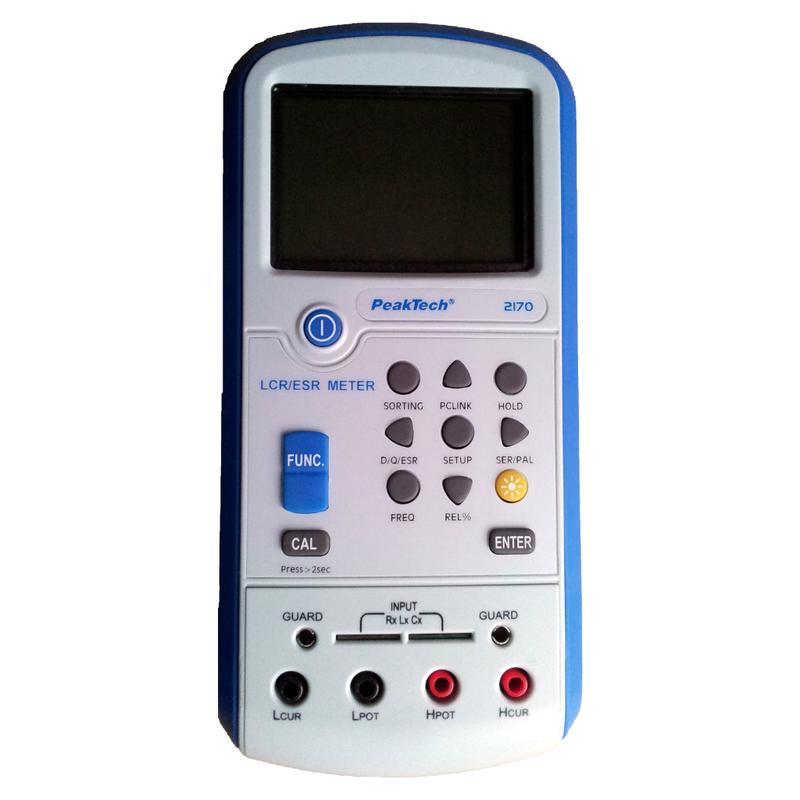

Peaktech 2170 Mugshot

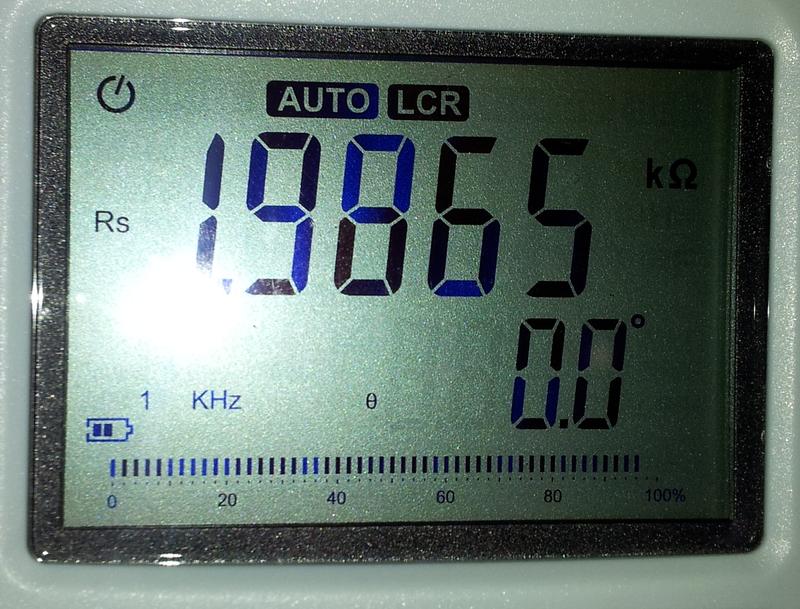

P2170 Lcd Resistance
Protocol¶
ES51919 chip protocol (serial).
