HP 3325A¶


Status	abandoned
Frequency (sine)	20MHz
Frequency (square)	10MHz
Frequency (other)	10KHz (triangle, sawtooth)
Waveforms	sine, square, triangle, sawtooth
Modulation	AM, FM
Connectivity	GPIB
Website	keysight.com

The Hewlett-Packard 3325A is a 20MHz function generator with GPIB connectivity.

GPIB settings¶

    -

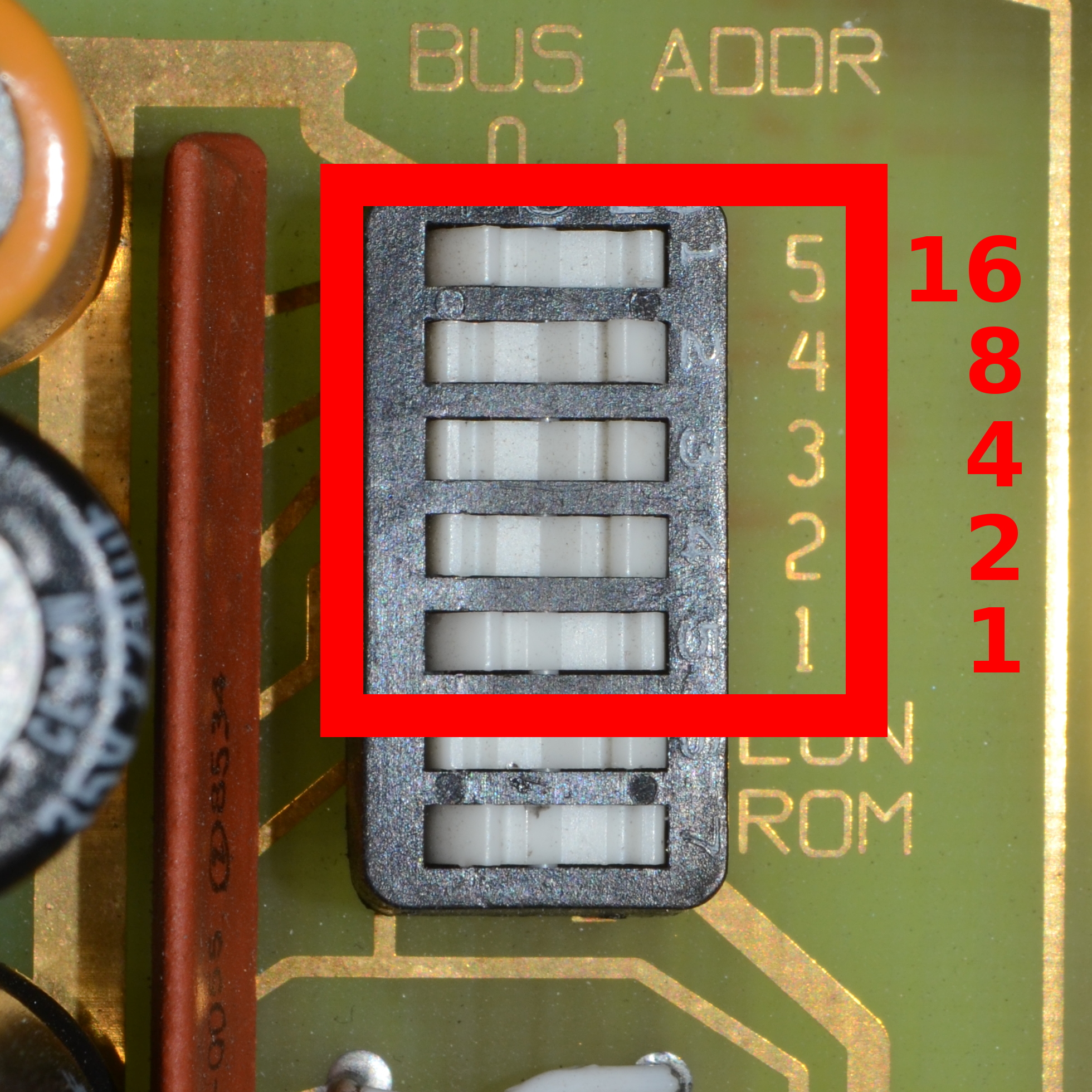

        [](./img/Hp_3325a_gpib_addr_ctl.jpg)

GPIB address selection switches

    -

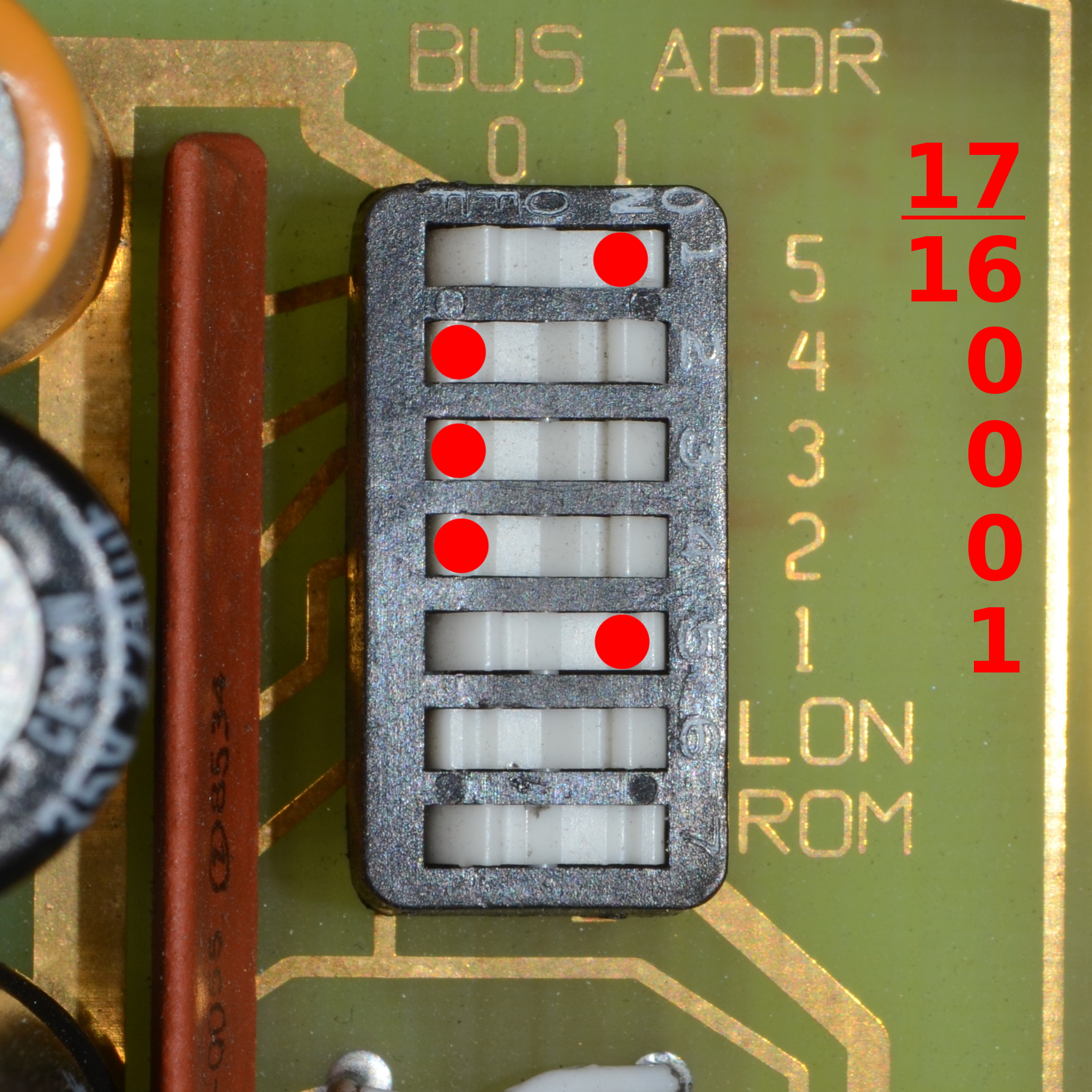

        [](./img/Hp_3325a_gpib_addr_17_example.jpg)

Example setting for GPIB address 17

    -

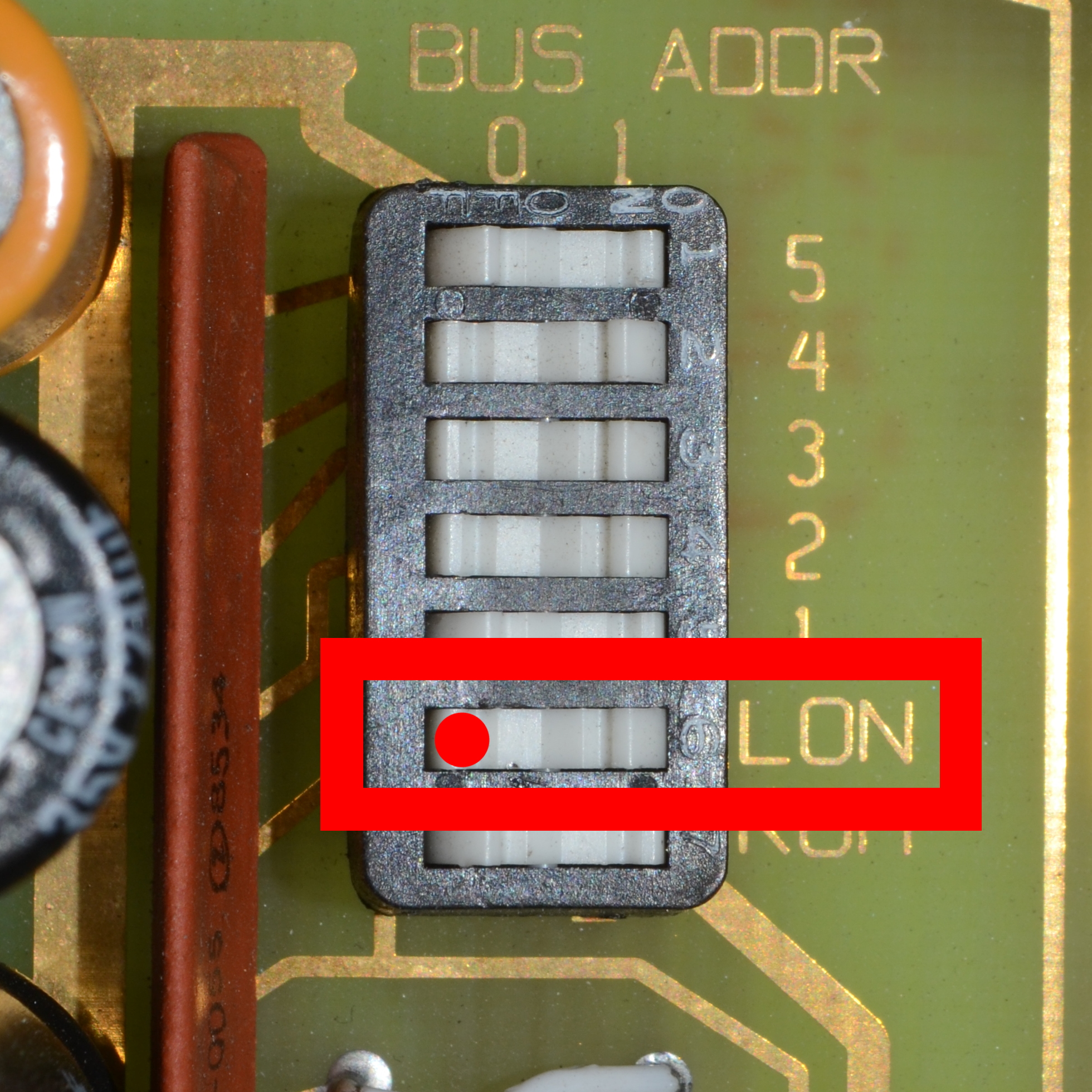

        [](./img/Hp_3325a_gpib_lon_setting.jpg)

Location of LON switch, with correct setting indicated by red dot

Status¶

mrnuke had a 3325A, but he had to get rid of it before he could implement sigrok support. As such, the project is currently abandoned. The page is left as a quick reference on how to configure the GPIB controller, in case anyone wants to pick this up.
