Arachnid Labs Reload Pro¶
Arachnid Labs Reload Pro¶
| Status | supported |
| Source code | arachnid-labs-re-load-pro |
| Channels | 1 |
| Voltage/current (CH1) | 25W (50W with fan kit) / 0-6A / 0-60V |
| Connectivity | USB |
| Features | DC constant current load |
| Website | arachnidlabs.com |
The Arachnid Labs Re:load Pro is a programmable DC electronic load (25W, or 50W with fan kit, 0~6A, 0~60V) with serial connectivity over USB.
See Arachnid Labs Reload Pro/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- Cypress PSoC 4200 series microcontroller: Cypress CY8C4245PVI-482 (datasheet)
- Pass transistor: Infineon BTS141 (datasheet)
- Optional fan kit
Photos¶
Arachnid Labs Reload Pro Mugshot

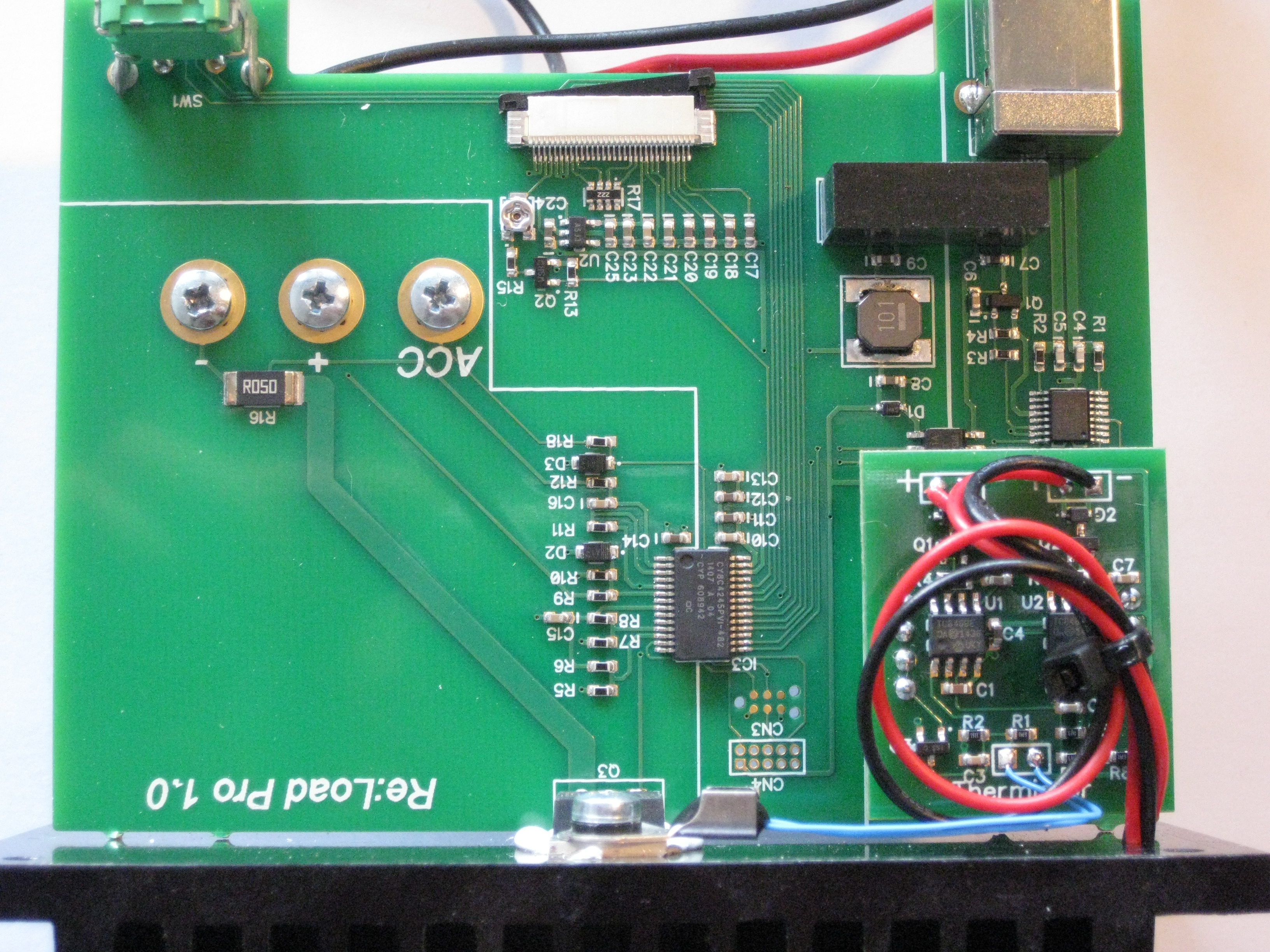

Arachnid Labs Reload Pro Pcb Top 1

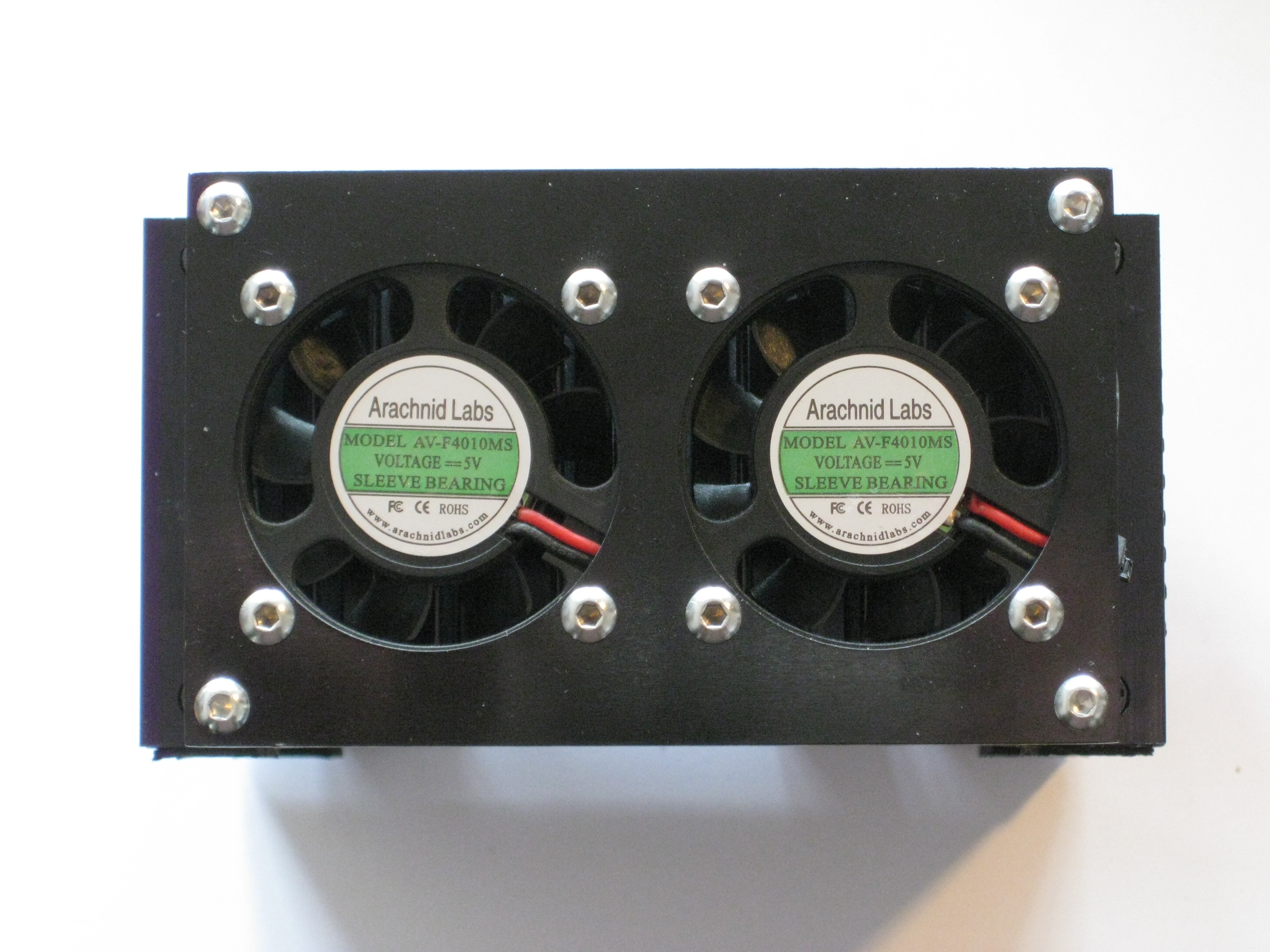

Arachnid Labs Reload Pro Back Fan Kit

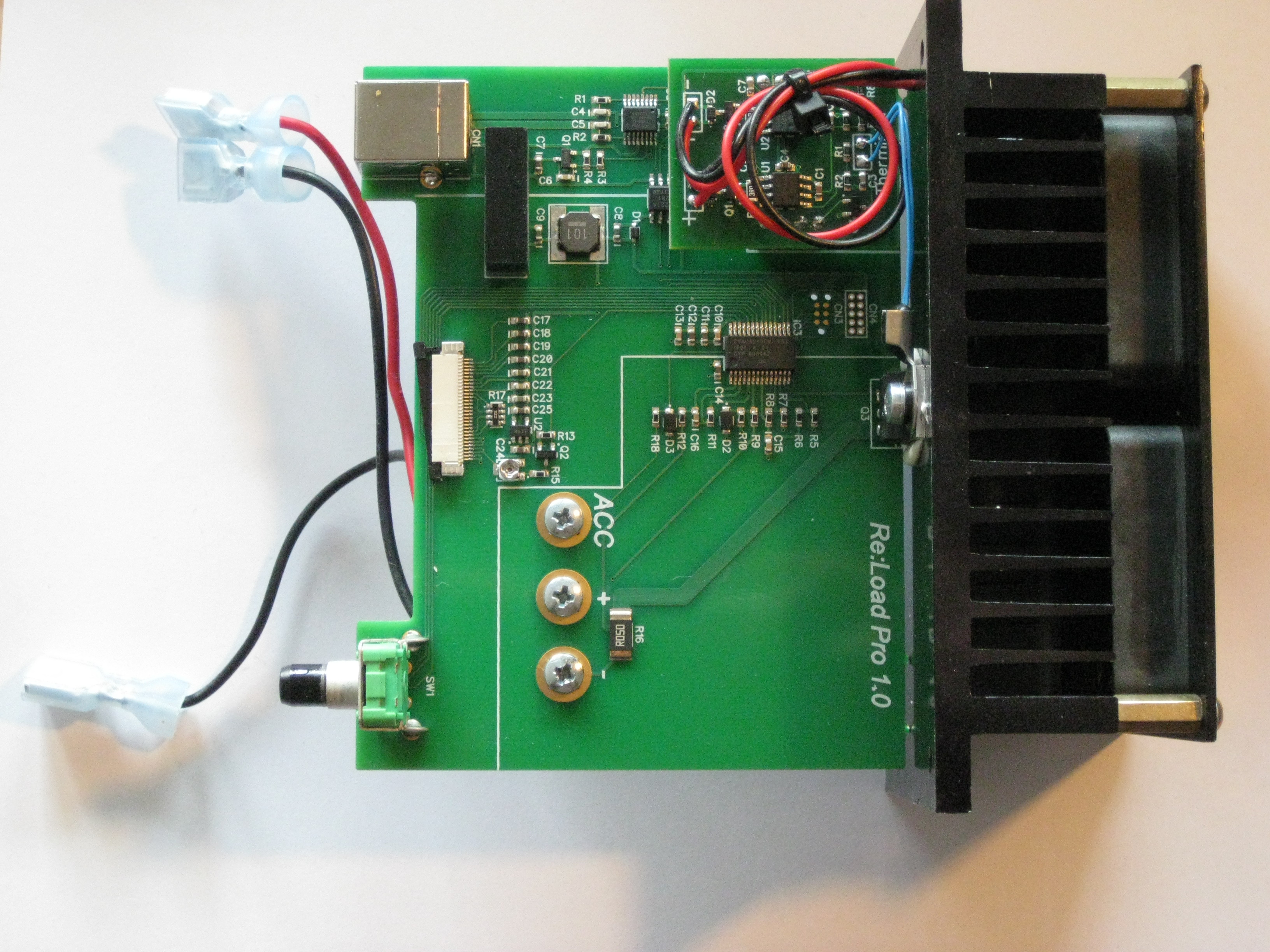

Arachnid Labs Reload Pro Pcb Top 2

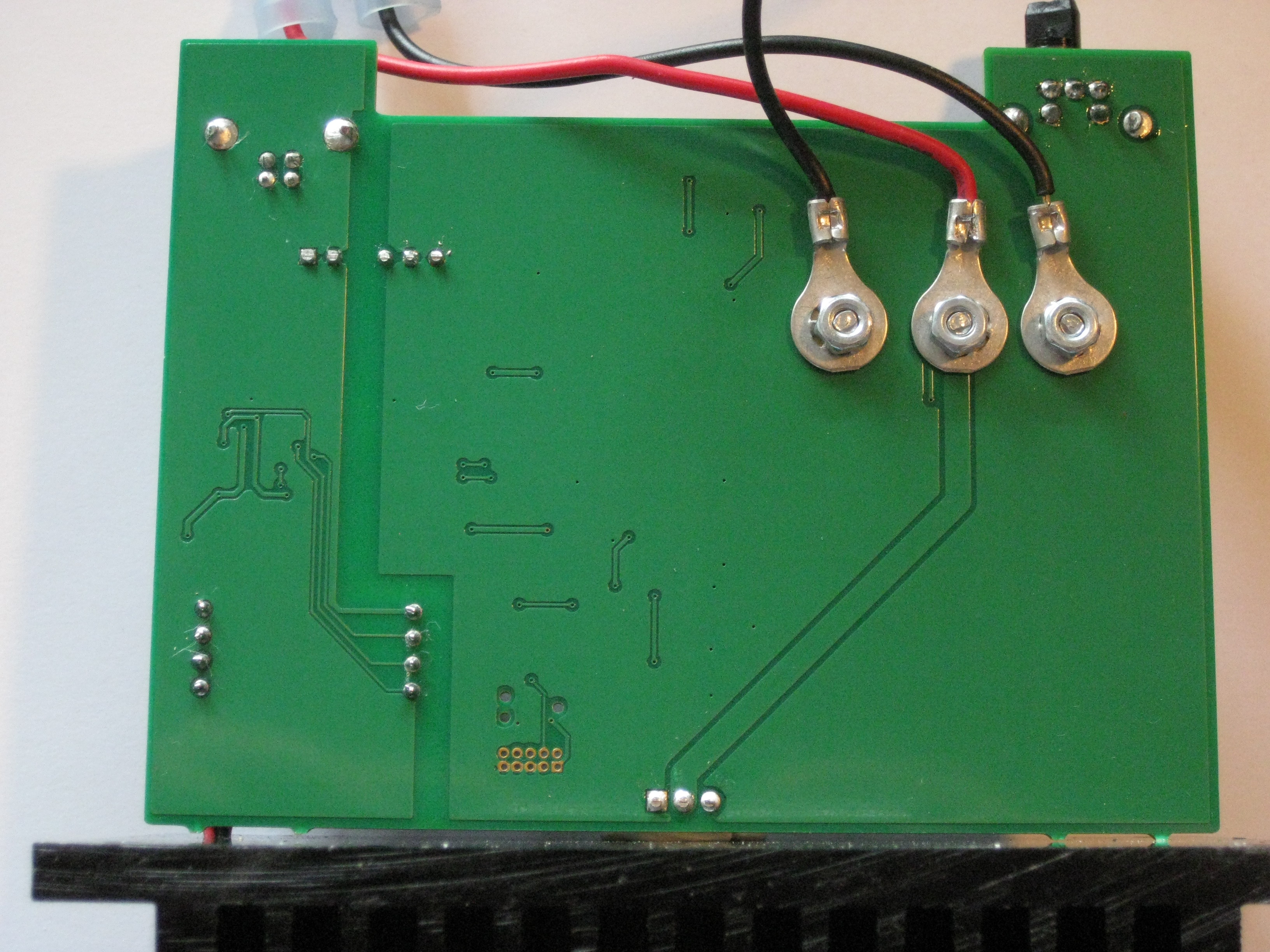

Arachnid Labs Reload Pro Pcb Bottom

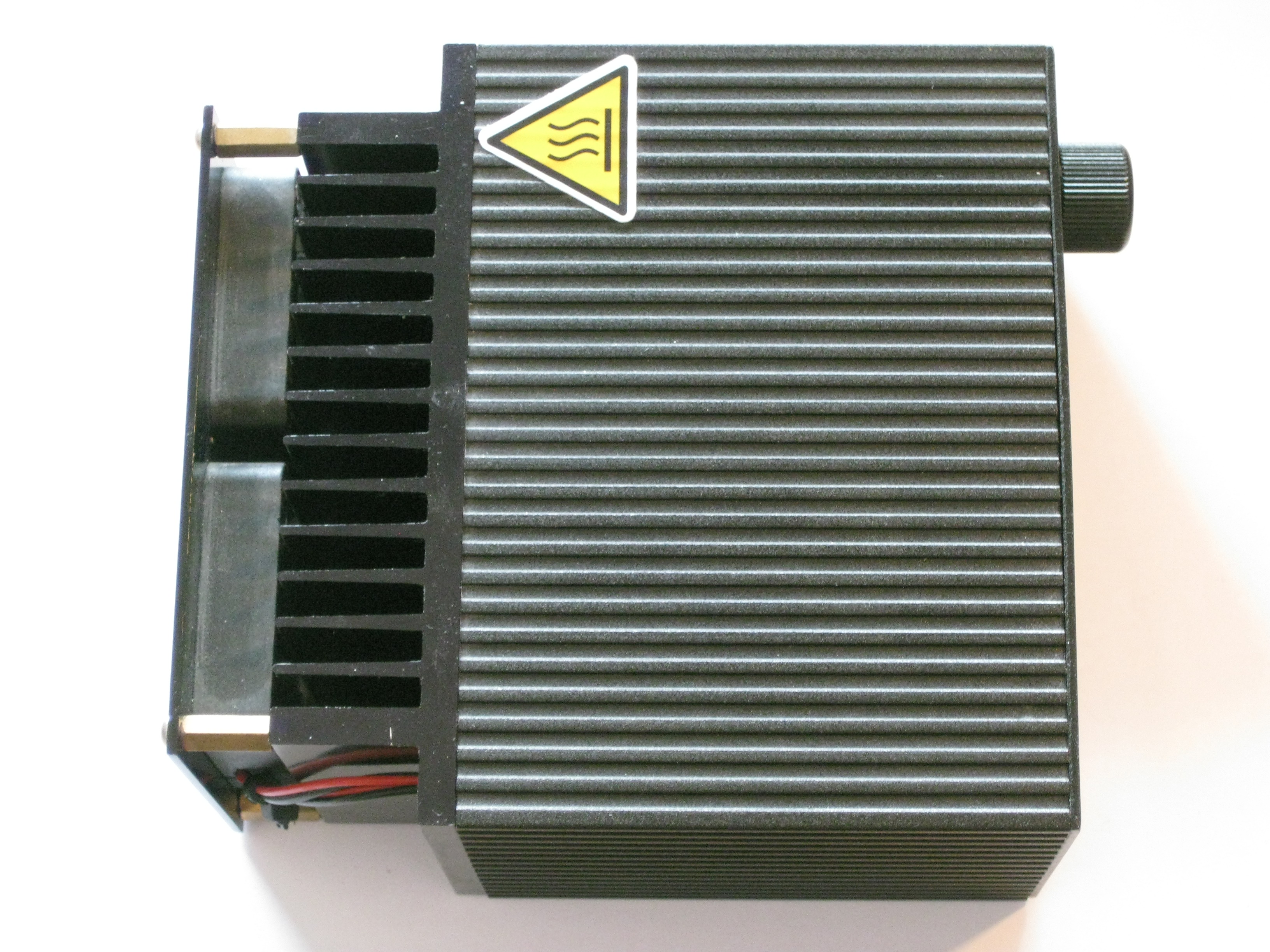

Arachnid Labs Reload Pro Top

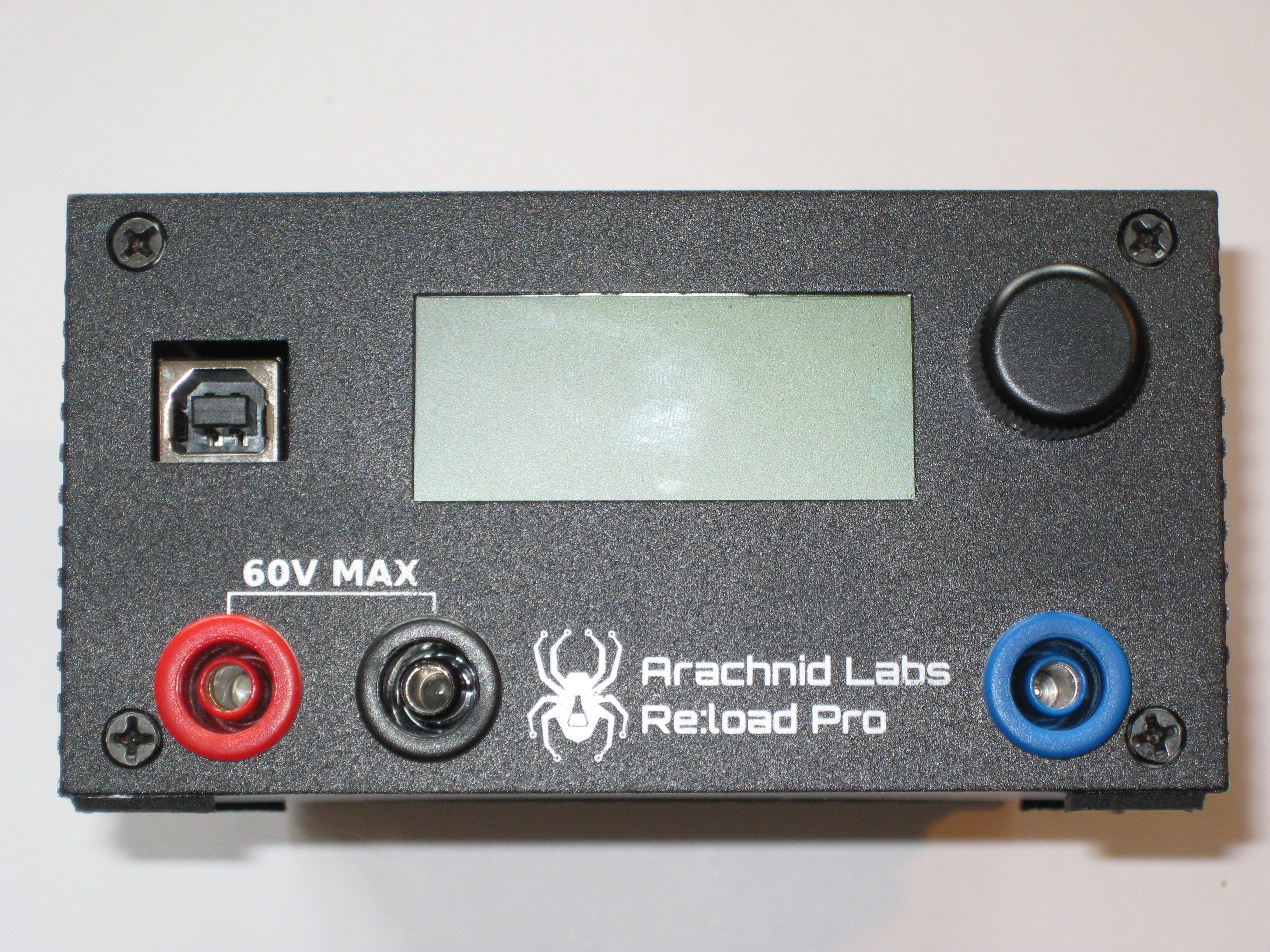

Arachnid Labs Reload Pro Front
