Testo 435-4¶
The Testo 435-4 is a multifunction meter, capable of measuring airflow, humidity, temperature, indoor air quality, and more depending on the connected probes. It can store up to 10000 measurements internally, and communicates with a host via USB.
See Testo 435-4/Info for more details (such as lsusb -v output) about the device.
Hardware¶
- Renesas M16C/62P (M30626FJPGP) microcontroller.
- Cypress CY62128DV30 128K RAM chip.
- FTDI FT232RQ serial-USB interface chip.
Photos¶
Testo 435 4 Top

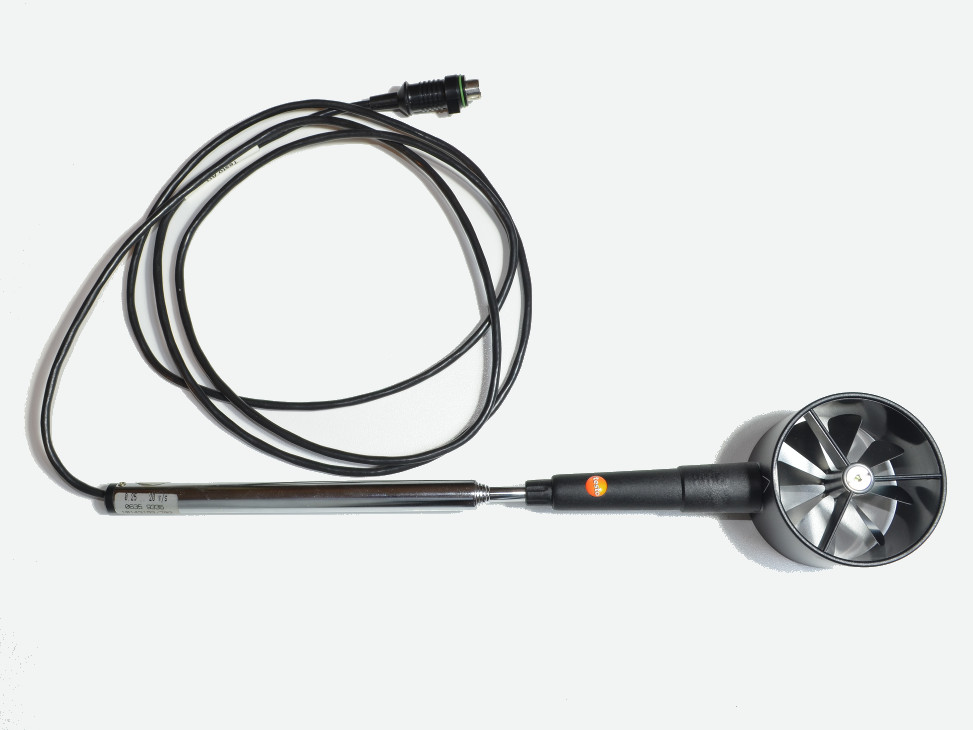

Testo Vane Probe

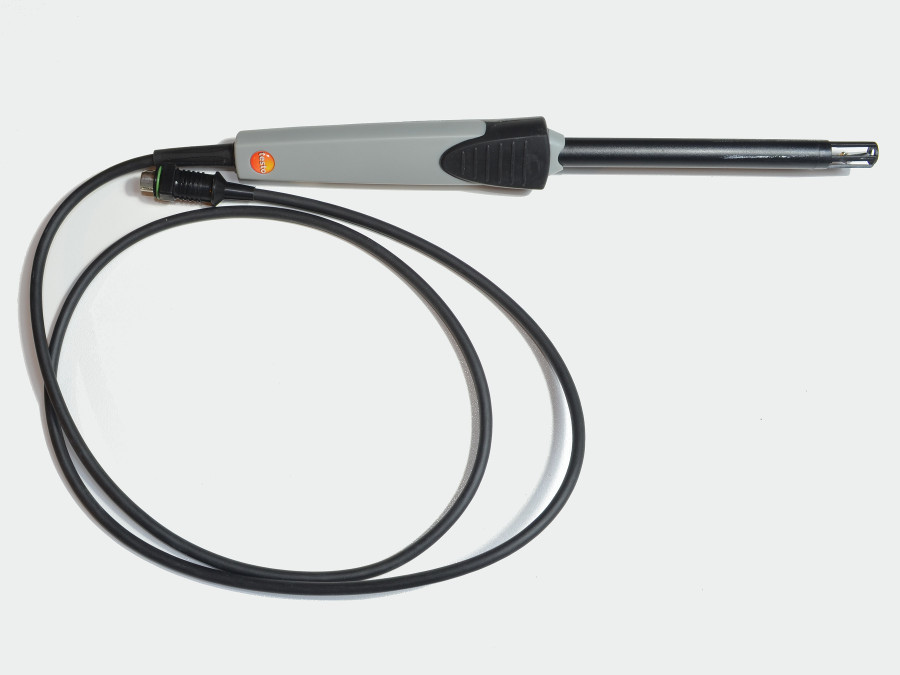

Testo Temperature Probe

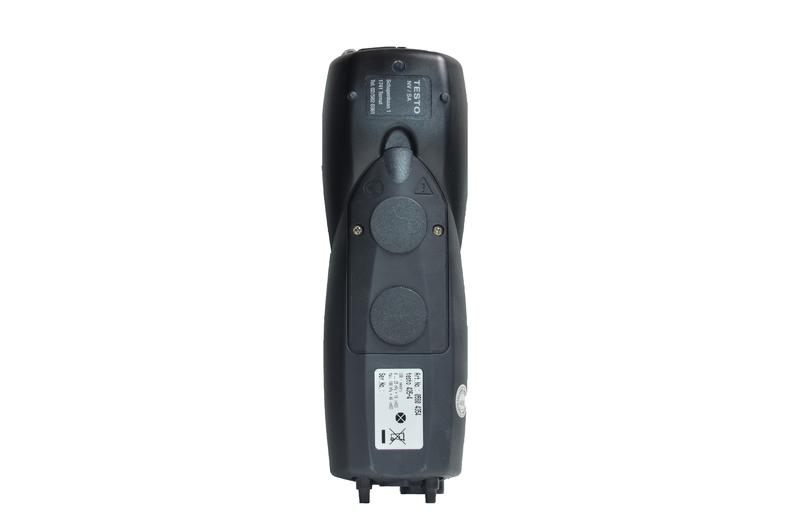

Testo 435 4 Back
Testo 435 4 Pcb Bottom

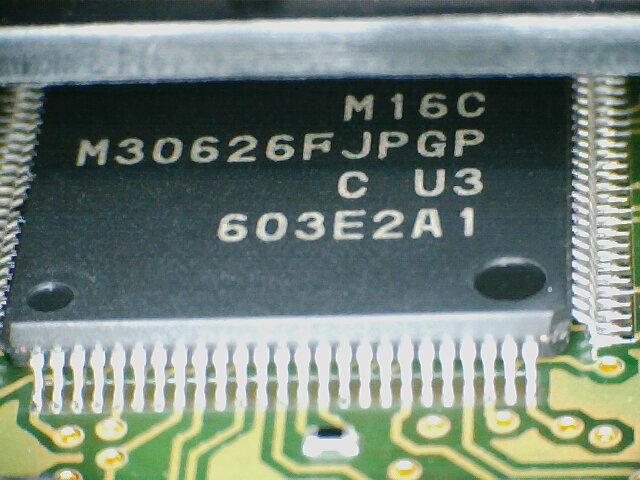

Testo 435 4 Renesas Mcu

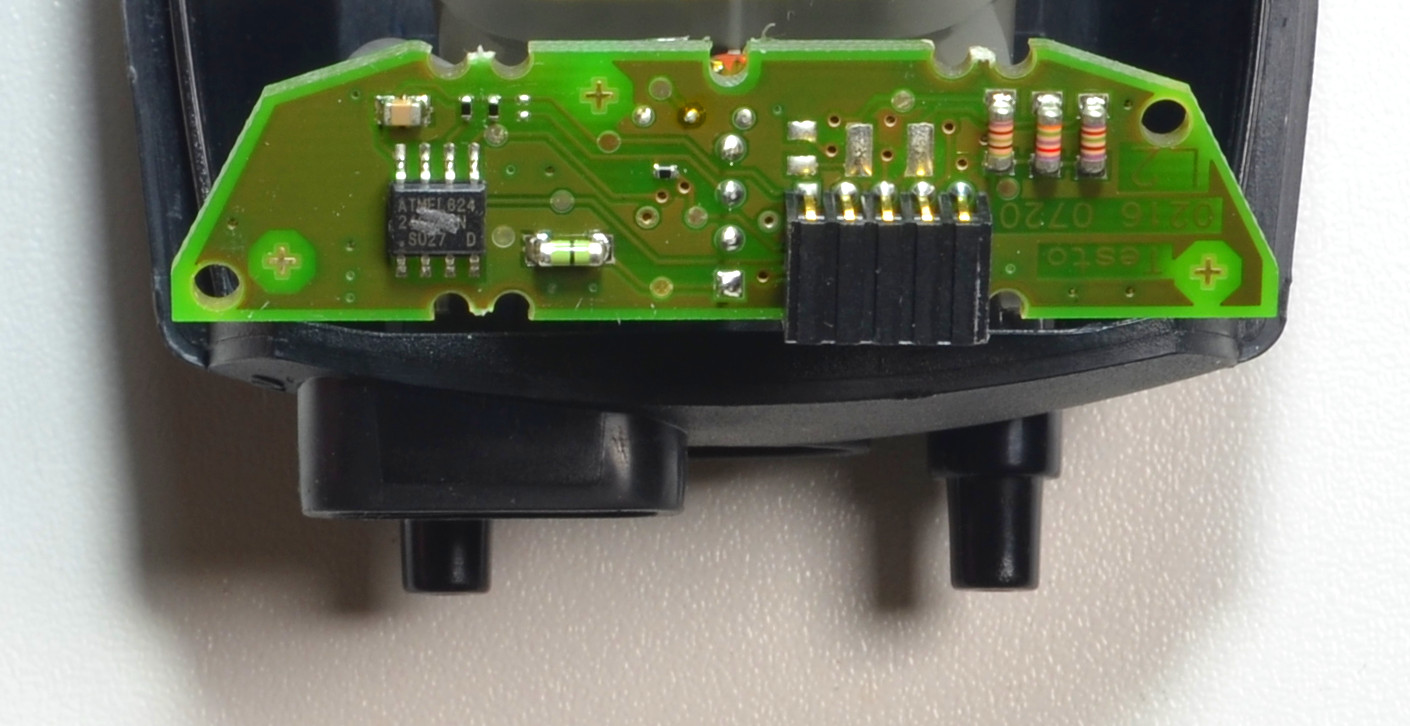

Testo 435 4 Probe Board Pcb

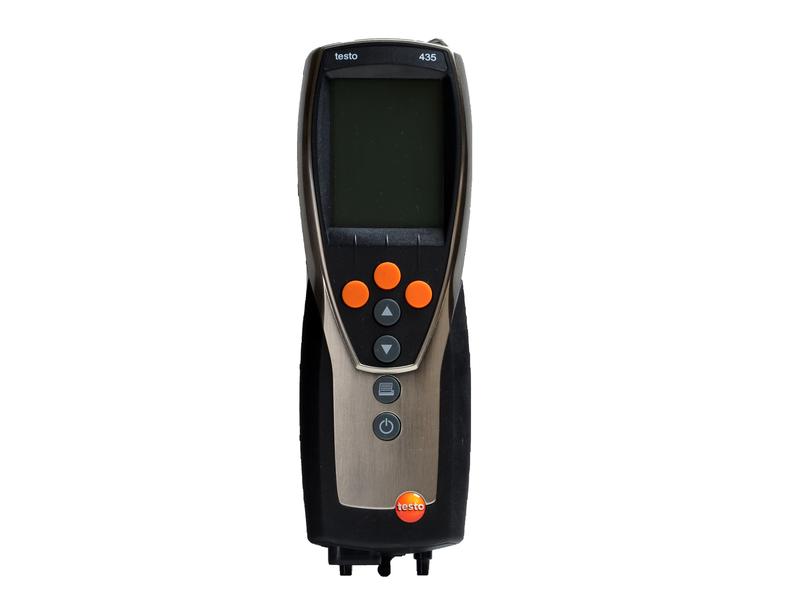

Testo 435 4

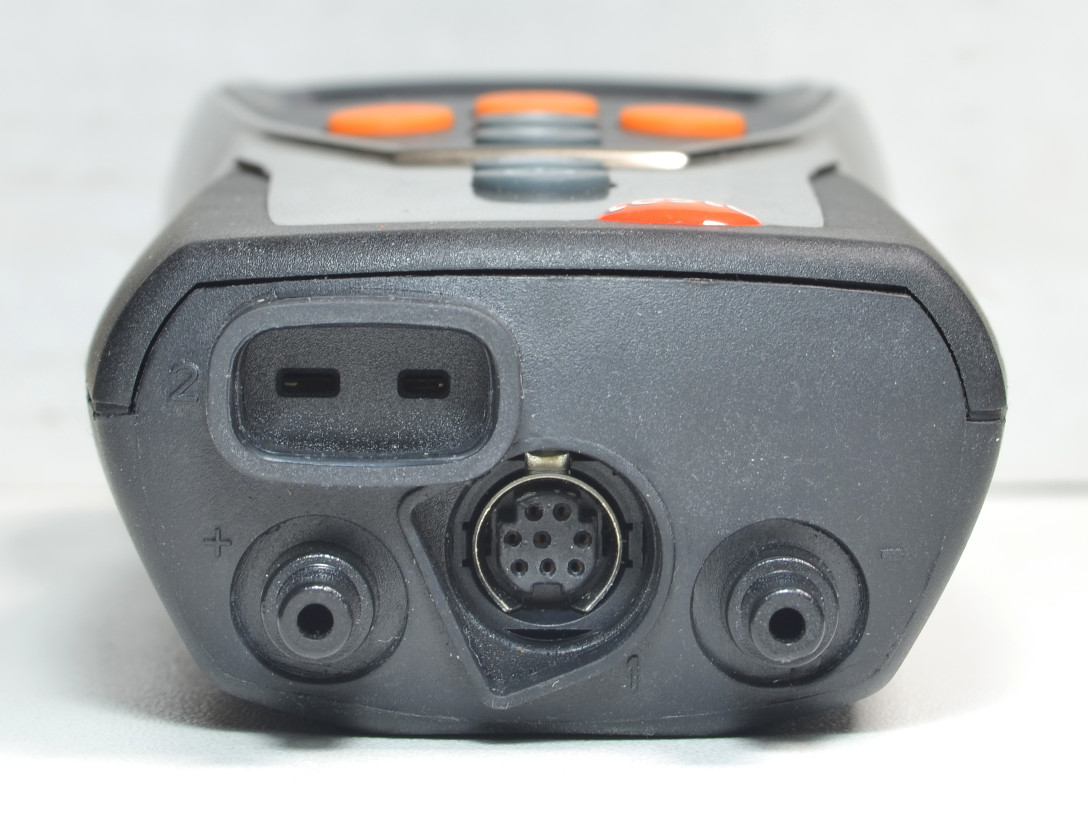

Testo 435 4 Bottom

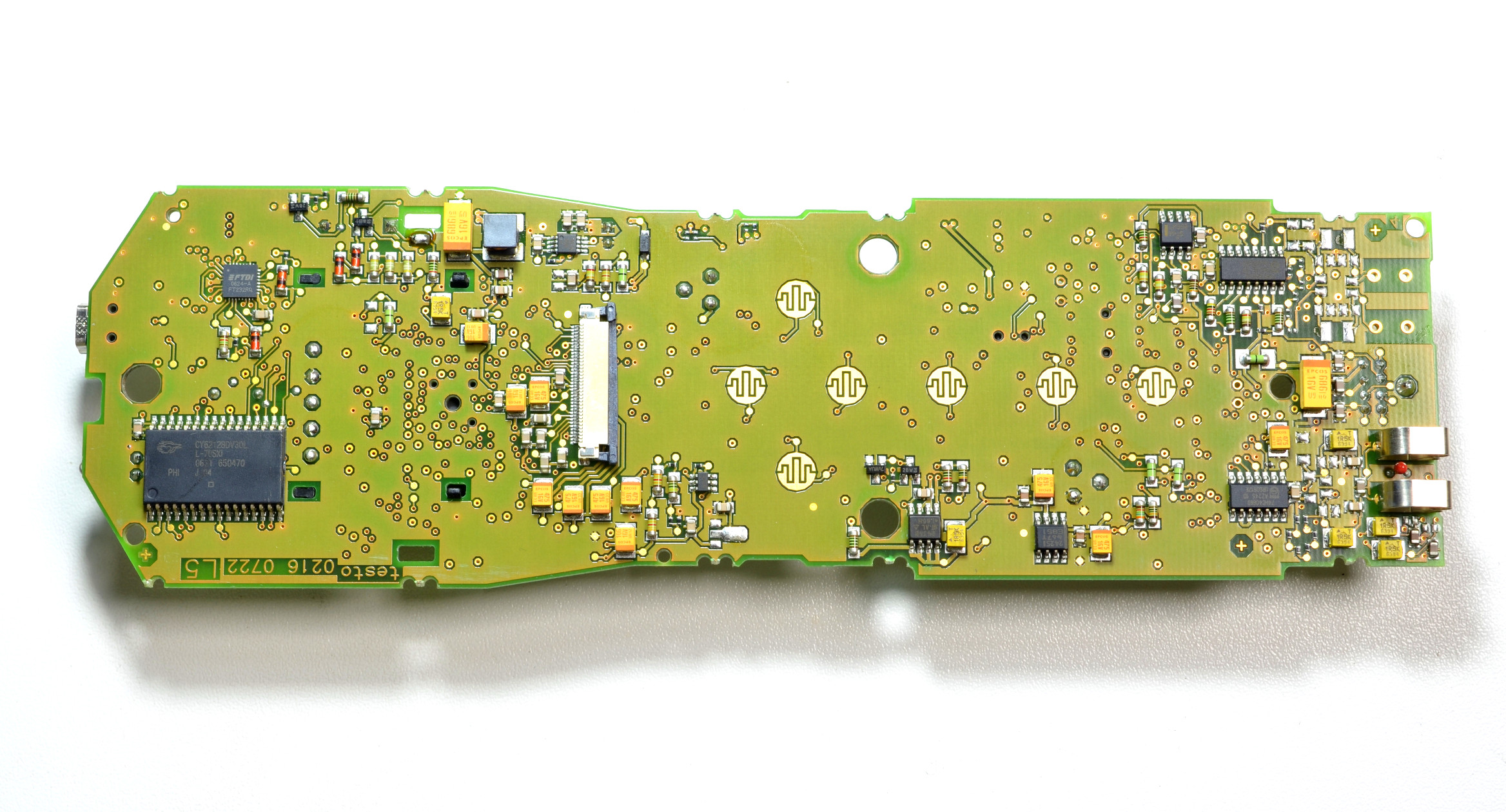

Testo 435 4 Pcb Top

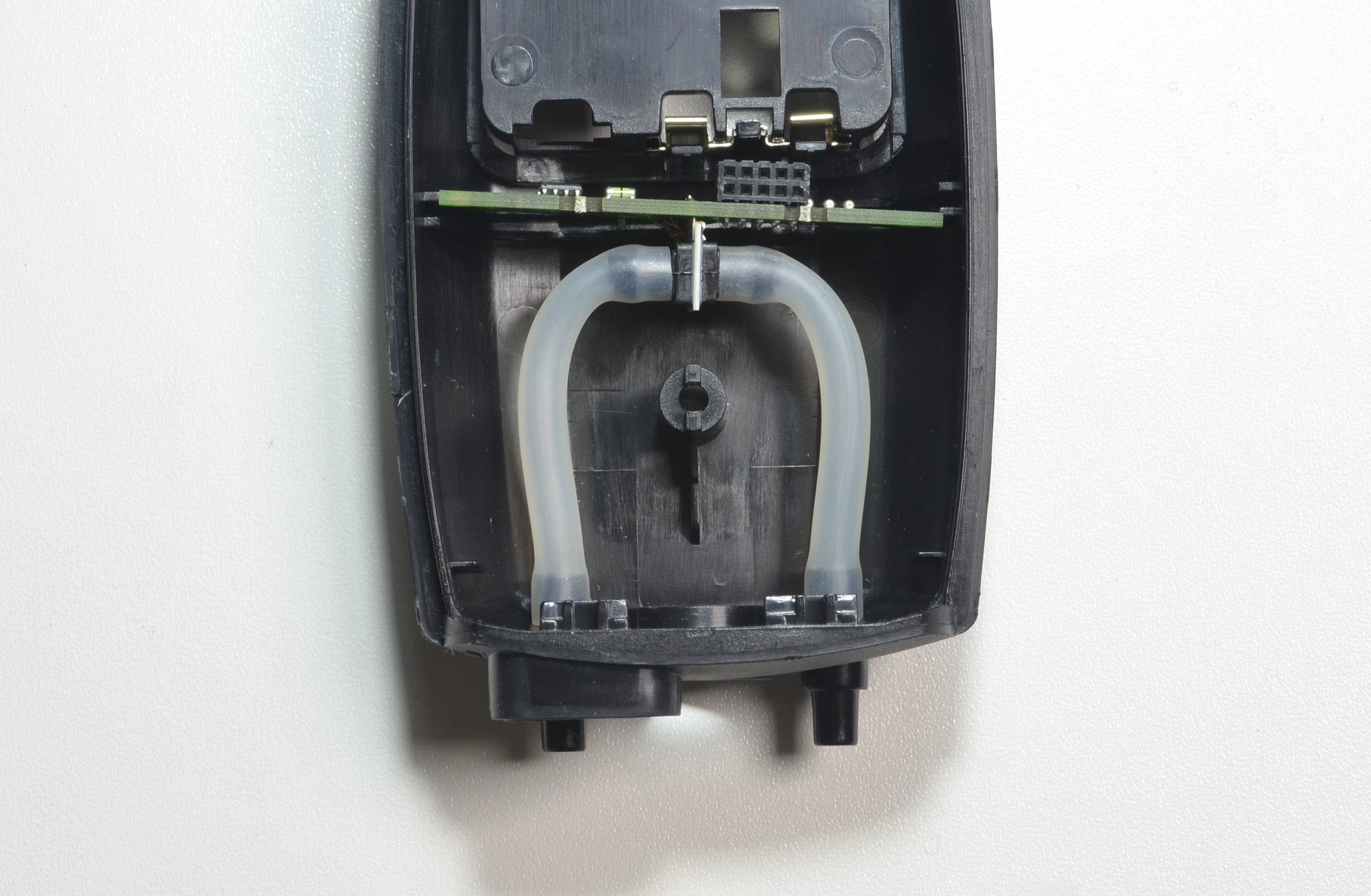

Testo 435 4 Probe Connection
